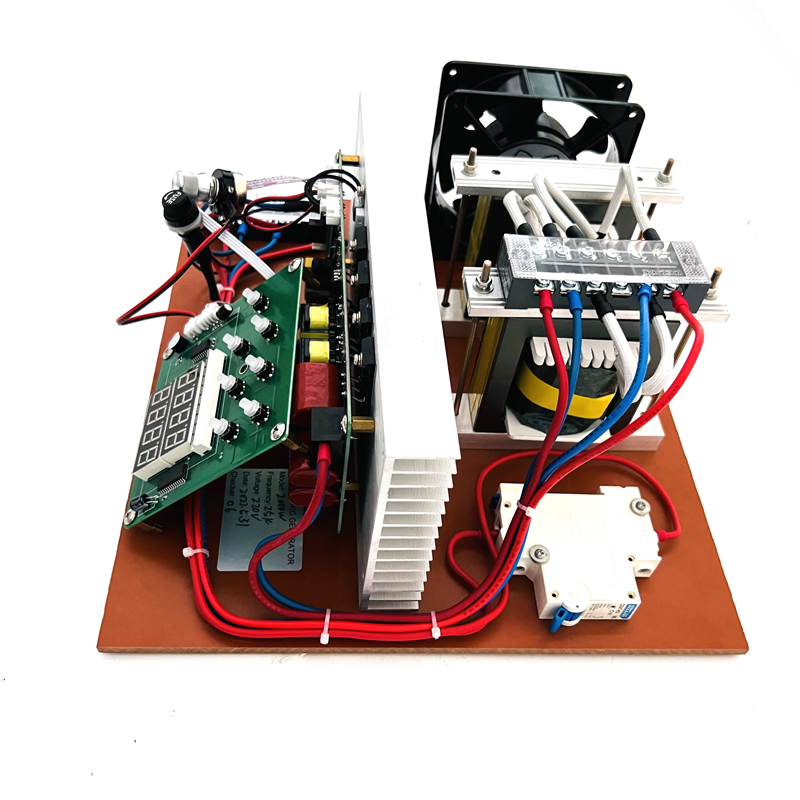

28khz 1000W Ultrasonic Frequency Generator with piezo r for Cleaning Machinery/Measuring Tools/Cutting Tools Industry
Category：Industry dynamics
The main feature of the sweep frequency ultrasonic power generator is that it uses the domestic advanced digital pulse mode to drive the transducer. Compared with the traditional self-excited control technology, it is small in size, light in weight, high in power conversion, stable and reliable in operation. The ultrasonic power is continuously adjustable, and the frequency automatically tracks the changes of the vibrator, which ensures that the machine is in the best working state from beginning to end.
The sweep frequency ultrasonic power generator is equipped with short-circuit protection function; The over-current and over-voltage protection, in addition to setting the protection current when adjusting the machine, also sets the working protection current to prevent the machine from being damaged due to excessive current or unstable voltage. Overheating protection function can prevent tube burning and plate burning, and reduce the damage of sweep frequency ultrasonic power generator. The sweep frequency ultrasonic power generator adopts a safe voltage regulation mode to adjust the output power of the ultrasonic generator steplessly.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
