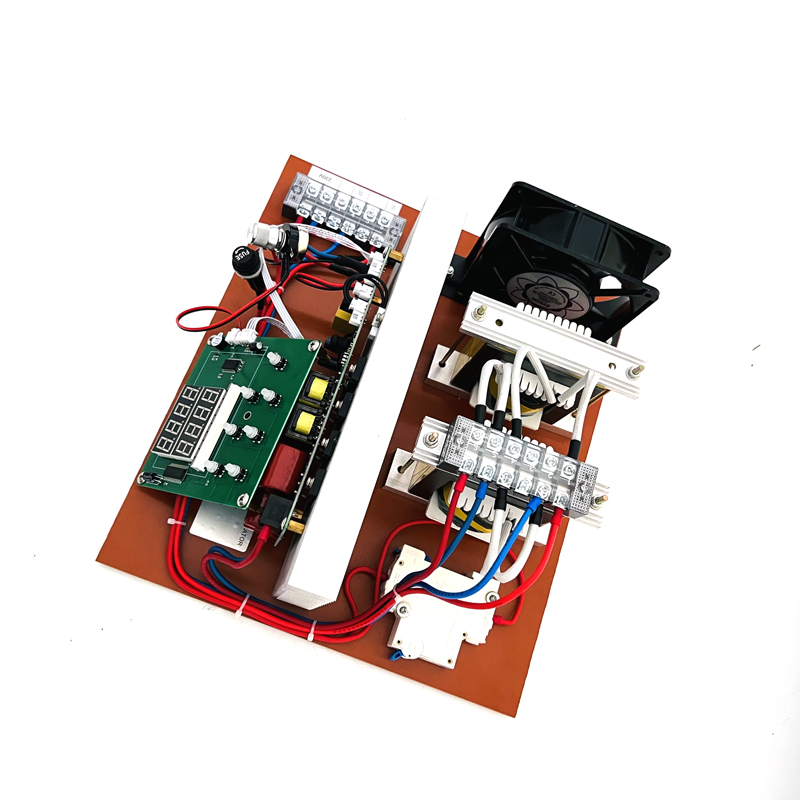

100W-3000W Ultrasonic Frequency Signal Generator with Ultrasonic Piezo Cleaning Transducer for cleaning

Category：Industry dynamics

100W-3000W Ultrasonic Frequency Signal Generator with Ultrasonic Piezo Cleaning Transducer for cleaning

In order to improve the complex defects of the tuning step, the pulse ultrasonic power generator has upgraded the circuit, program and components. After more than a year of repeated testing and practice, the automatic frequency tracing mode has been adopted. The constant current output is more stable, the functions are more complete, and the debugging is simpler. It is also the best ultrasonic generator in the domestic cleaning industry.

Advantages of pulse ultrasonic power generator:

◆ Good pulse cleaning effect, high cleanliness and consistent cleanliness of all workpieces

◆ Fast cleaning speed and improved production efficiency under enhanced mode

◆ It is not necessary to touch the cleaning solution with hands, and the deep holes, narrow seams and hidden parts of the workpiece are also cleaned safely and reliably

◆ The pulse ultrasonic power generator has no damage to the workpiece surface

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
