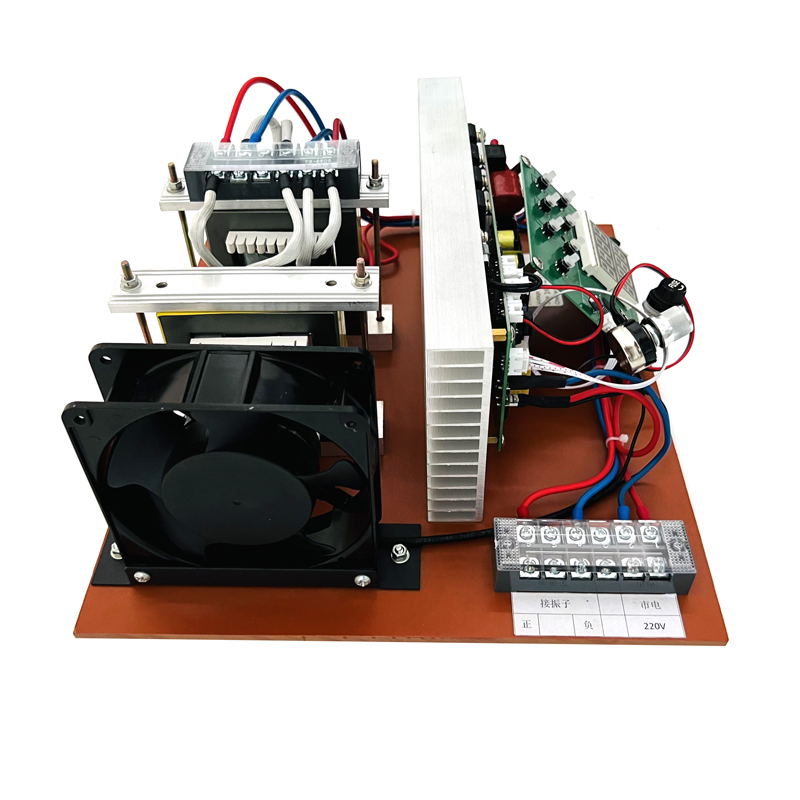

28khz-40khz Ultrasonic Frequency Generator with power control 2000W for Digital Industrial Cleaner
Category：Industry dynamics
The matching between ultrasonic power supply and transducer is mainly tuning matching and impedance matching. In tuning and matching, in order to reduce the reactive power loss caused by electrostatic impedance and maximize the output power of piezoelectric transducer, it is necessary to make the transducer approximate to the state of pure resistance through matching to improve the output efficiency of ultrasonic power supply. In addition, if the tuning matching is completed, that is, when the load is in the pure resistance state, in order to achieve the maximum power output of the power supply, it is necessary to make the optimal output impedance of the actual load and the power supply equal. The realization method is to transform the impedance of the transducer into the optimal output impedance of the ultrasonic power supply through a high-frequency transformer, so that the piezoelectric transducer can output the maximum power.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
28khz-40khz Ultrasonic Frequency Generator with power control 2000W for Digital Industrial Cleaner
