40khz 220V Low-frequency Ultrasonic Frequency Generator for South Korea Malaysia India Retail

Category：Industry dynamics

40khz 220V Low-frequency Ultrasonic Frequency Generator for South Korea Malaysia India Retail

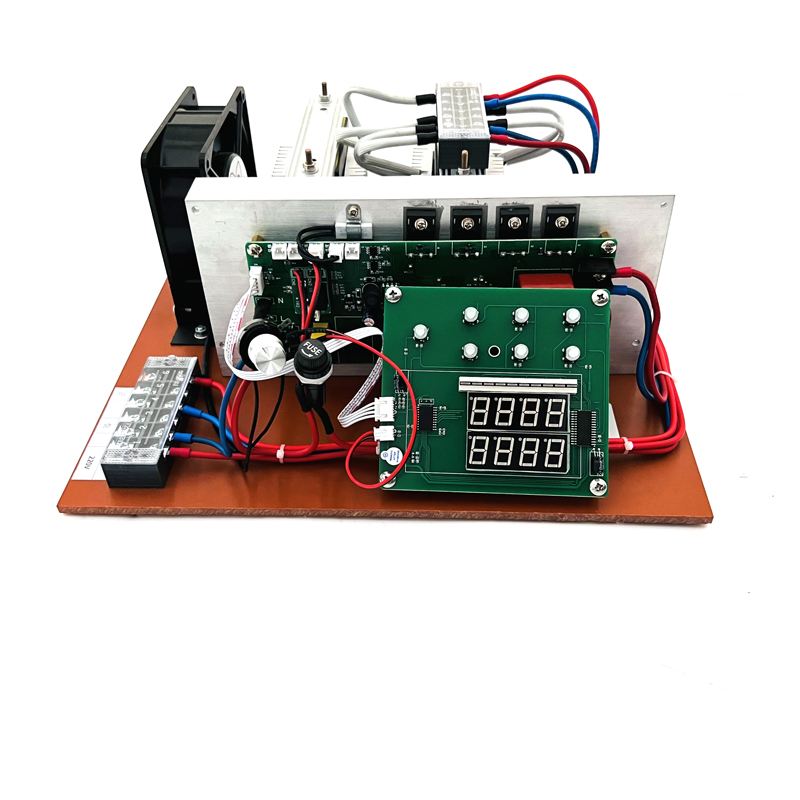

The ultrasonic generator can control the power of the cleaning machine through bidirectional silicon controlled rectifier. The inverter module is a half bridge inverter, which inverts the DC voltage into high-frequency AC voltage, and then through tuning and matching, it can be matched with the transformer boost and inductance of the impedance matching module, and can be transmitted to the piezoelectric transducer with high efficiency and maximum power. Finally, the piezoelectric transducer converts the electrical energy output by the ultrasonic power supply into high-frequency mechanical vibration.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
