Piezoelectric Digital Ultrasonic Sound Generator 28khz 1500w

Category：Industry dynamics

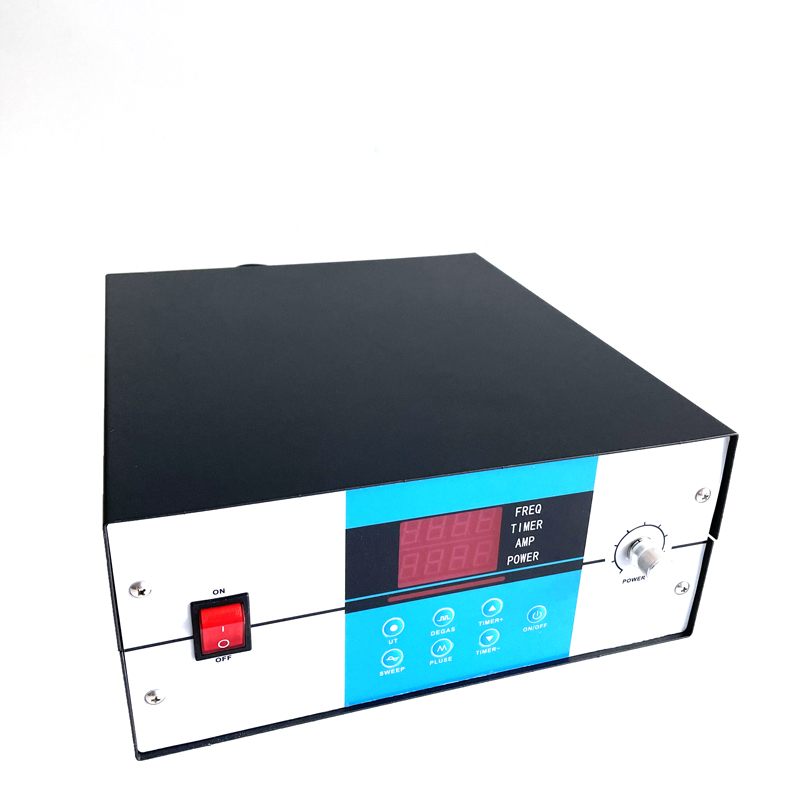

Piezoelectric Digital Ultrasonic Sound Generator 28khz 1500w

digital high-power multi-purpose ultrasonic power supply system is mainly composed of computer digital processing, broadband frequency point optional signal source, driving circuit, frequency automatic tracking, fast protection, impedance matching, display board and keyboard to form a friendly interface convenient for man-machine conversation. It can drive up to 16 drive circuit boards (extension boards), and the maximum power can reach 32kW. When in use, it is connected to the ultrasonic transducer through the output transformer and inductance. The magnetic core size, winding parameters and turn ratio of the output transformer, as well as the magnetic core size and winding parameters of the inductor should match the electrical parameters and connection mode of the ultrasonic transducer to make it more versatile. This power supply system can be used as power supply for ultrasonic cleaning equipment, ultrasonic emulsification equipment, ultrasonic extraction equipment, ultrasonic welding equipment, ultrasonic wastewater treatment equipment, etc.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
