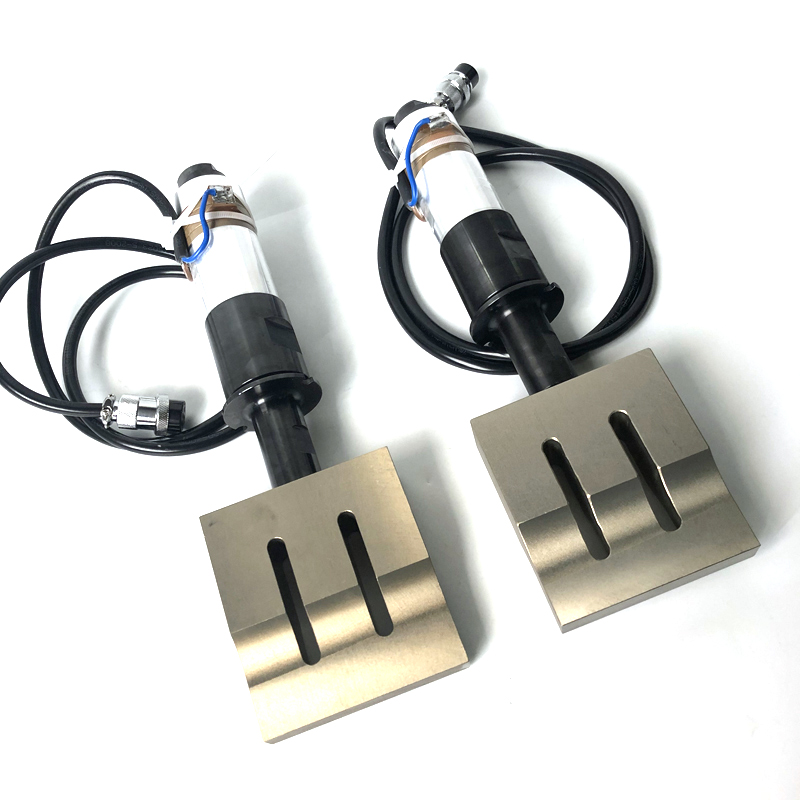

4000W 15KHZ Customized Ultrasonic Welder Converter Horn For Automatic Ultrasonic Welding Machine
Category：Company news
Ultrasonic welding transducer is also called ultrasonic vibrator. In the industry, the whole body connected with the transducer and the horn is called vibrator. The ultrasonic vibrator is a device that realizes the mutual conversion of electrical energy and mechanical energy (acoustic vibration) by the piezoelectric effect of piezoelectric ceramics, and amplifies through the front and rear irradiation cover blocks matched by acoustic impedance.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
4000W 15KHZ Customized Ultrasonic Welder Converter Horn For Automatic Ultrasonic Welding Machine
