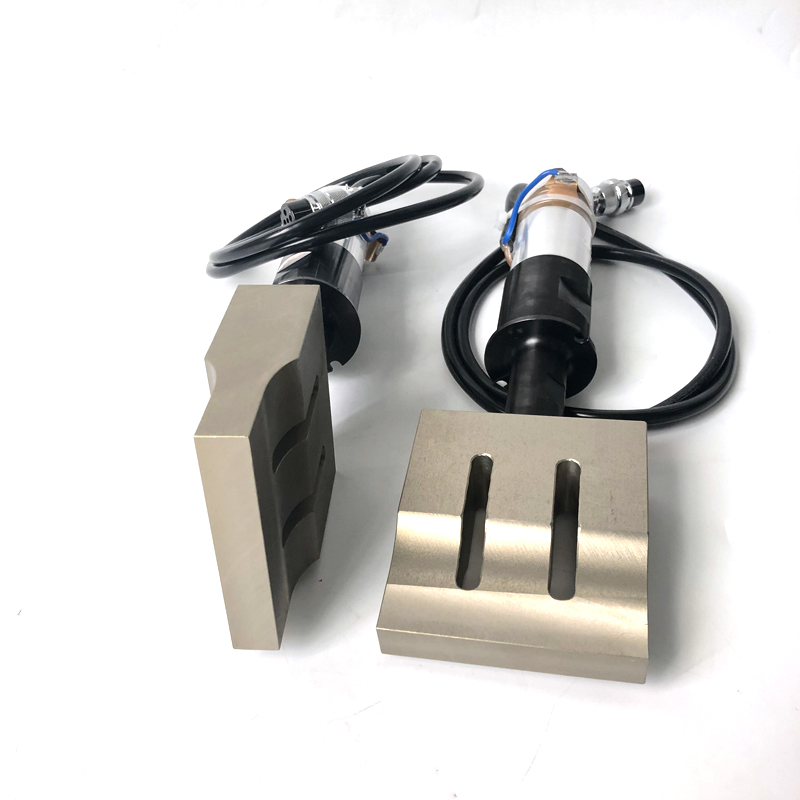

4200W 15KHZ Langevin Ultrasonic Welder Converter Horn For Ultrasonic Non-Woven Fabric Welding Machine
Category：Company news
Ultrasonic welding transducer is usually used for plastic welding. It completely replaces the traditional industry of glue bonding. In the ultrasonic welding process, there is no bolt, nail, buckle, welding material or adhesive and other materials combined. It is faster than the traditional adhesive or glue water, and the drying time is also very fast. The welding process can be easily automated and customized, To suit the specific specifications of each type of product to be welded.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
4200W 15KHZ Langevin Ultrasonic Welder Converter Horn For Ultrasonic Non-Woven Fabric Welding Machine
