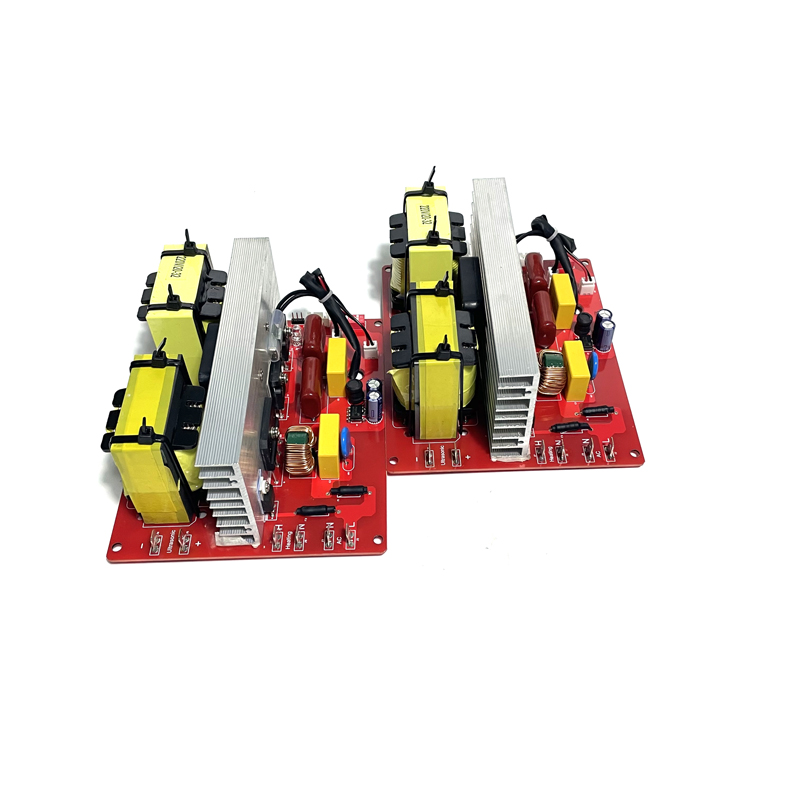

Ultrasonic Generator Parts 40KHz 1800W Ultrasonic Cleaning built-in PCB Circuit Board
Category：Industry dynamics
The power driving tube of ultrasonic driving circuit board adopts imported IGBT power module, which has the advantages of fast adaptive load recovery of output power, high efficiency, excellent energy saving, small volume, high power and high integration of ultrasonic driving circuit board. Reasonable structure, easy ventilation and heat dissipation, with over-current and over-voltage protection functions, and good continuous operation reliability. Adaptive domestic various forms of ultrasonic cleaning transducers
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Ultrasonic Generator Parts 40KHz 1800W Ultrasonic Cleaning built-in PCB Circuit Board
