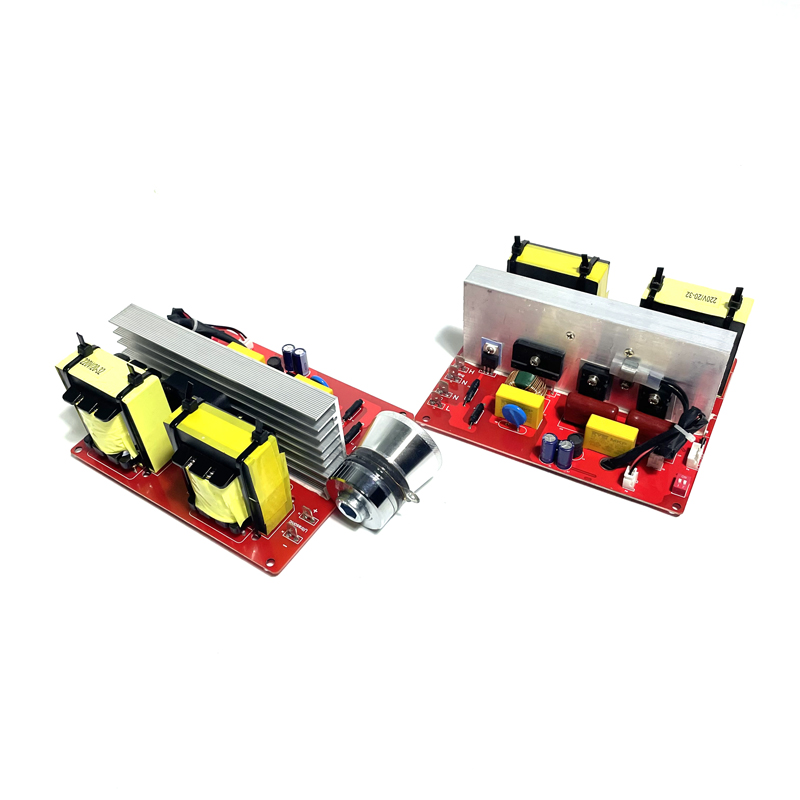

Ultrasonic Transducer Driver Generator PCB Board With Ultrasonic Sensor
Category：Industry dynamics
The ultrasonic drive circuit board has the functions of overcurrent, overvoltage and overheating protection. The ultrasonic drive circuit board adopts the external excitation mode under the control of the foreign CPU. Compared with the traditional self-excited circuit used by most domestic manufacturers, it has the characteristics of stable and reliable operation, small size, good heat dissipation, low sound and heat of the transducer, and no need to send people to debug the machine.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Ultrasonic Transducer Driver Generator PCB Board With Ultrasonic Sensor
