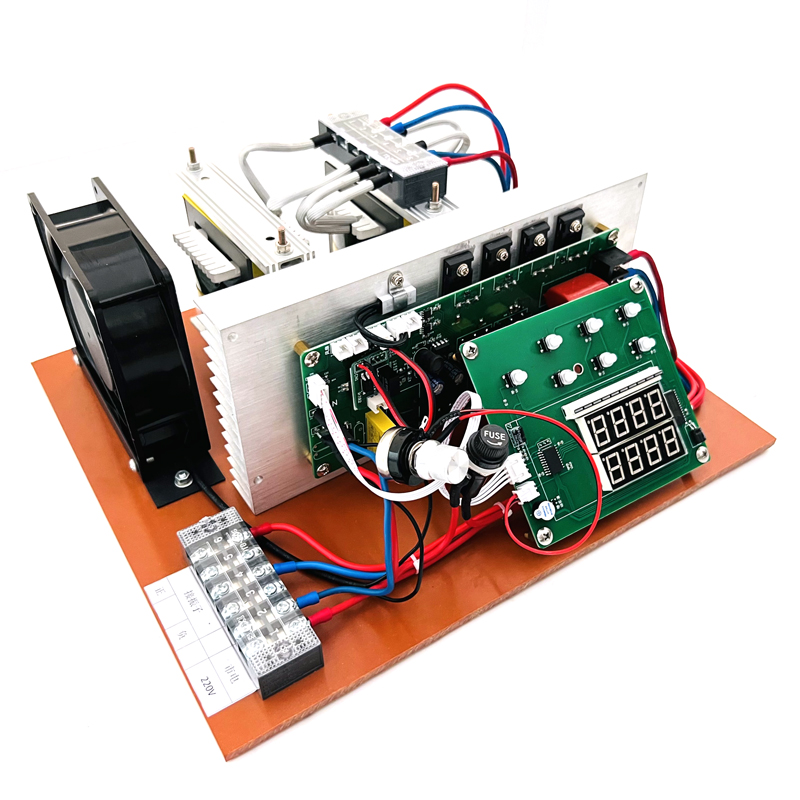

54khz-80khz High Frequency Ultrasonic Frequency Generator trasnducer drive box for cleaning system
Category：Industry dynamics
Ultrasonic generators are widely used in detection, cleaning, welding, medical and other fields, even in textile, aviation and other fields. Ultrasonic cleaning is one of the most extensive applications of power ultrasound. Ultrasonic will produce "cavitation effect" when it propagates in the liquid. The shock wave generated when the cavitation bubble suddenly closes can generate thousands of atmospheric pressures around it, which will directly and repeatedly impact the dirt layer. On the one hand, it will destroy the adsorption of dirt and the surface of the cleaning part, on the other hand, it will also cause the destruction of the dirt layer, leaving the surface of the cleaning part and dispersing them into the cleaning solution, To remove impurities, dirt or grease from the surface of the object. Compared with other cleaning methods, ultrasonic cleaning has the characteristics of high efficiency, low energy consumption, clean and environment-friendly, especially when cleaning complex parts, blind holes, and objects with many slits.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
54khz-80khz High Frequency Ultrasonic Frequency Generator trasnducer drive box for cleaning system
