High Power Ultrasonic Frequency Generator 900W-2400W 40khz for Household Dishwasher and dishwasher

Category：Industry dynamics

High Power Ultrasonic Frequency Generator 900W-2400W 40khz for Household Dishwasher and dishwasher

The power of the ultrasonic generator of the cleaning machine can be accurately adjusted at 10-100% to meet different cleaning requirements The perfect protection function, overheat protection, leakage protection and overcurrent protection function, frequency tracking make its output stable, and the ultrasonic cleaning effect more uniform and strong.

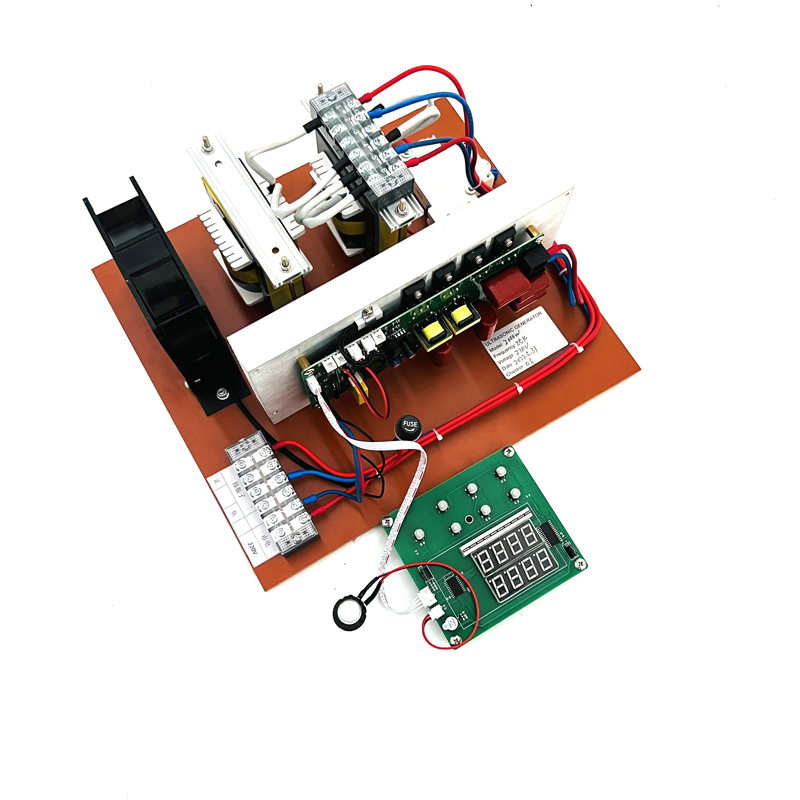

The ultrasonic generator is described as follows:

1. Display window: used to display timing time, power size, working status and fault conditions.

2. Sweep switch: select the normal working state or sweep working state.

3. Start/stop: It is used for the operation and suspension of control work.

4. Increase timing (power on working state): set the timing working value (set whether to turn on ultrasound when power on)

5. Reduce timing: (display: "ON/OFF") Set the timing working value (set the display letter).

6. Increase power (display current): increase output power (set display current).

7. Reduce power (display frequency): reduce output power (set display frequency).

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
