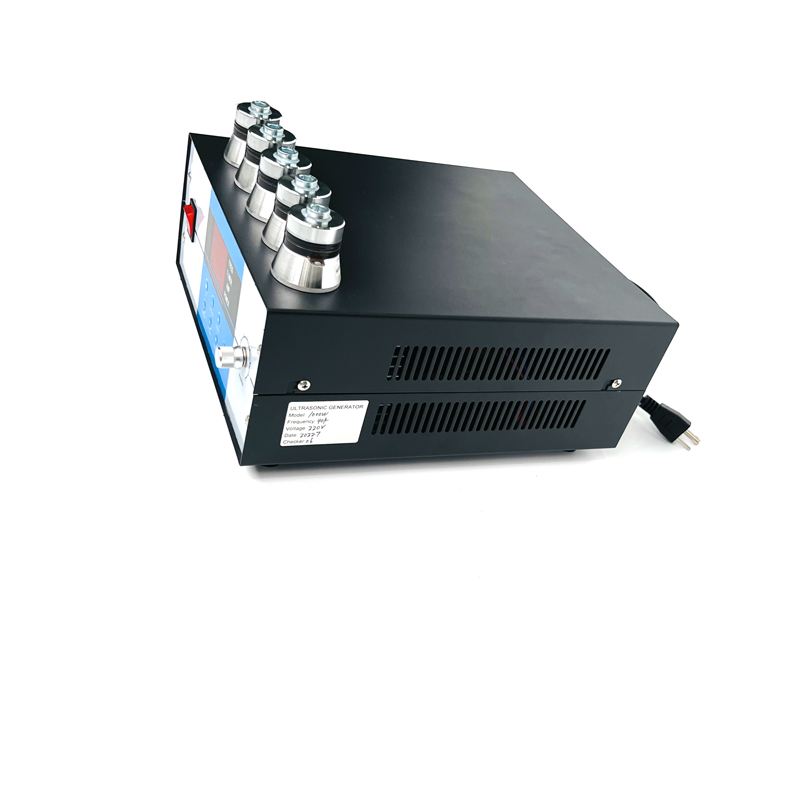

1000W 110V 220V Ultrasonic Waves Generator Variable Frequency 28khz-40khz for power cleaning system
Category：Industry dynamics
The importance of frequency tracking: it is a difficult problem that has plagued the application of ultrasonic machining technology for a long time. Without frequency tracking, the transducer will not work continuously and normally. Because the changing working conditions often cause the change of the resonant frequency of the transducer, which makes the vibration of the system detuned and the amplitude reduced. At the same time, when the transducer works in the detuning state, the temperature of the acoustic system will rise and the amplitude will drop exponentially, causing a vicious circle. This will not only affect the processing speed, but also affect the processing quality, shorten the life of the ultrasonic generator, and even cause the transducer to burn out due to overheating.
Manufacturers sell ultrasonic generator, ultrasonic power supply, ultrasonic electric box, ultrasonic control box, ultrasonic control cabinet, ultrasonic power source, ultrasonic power box, ultrasonic generator power supply, ultrasonic vibrator, vibration box
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
1000W 110V 220V Ultrasonic Waves Generator Variable Frequency 28khz-40khz for power cleaning system
