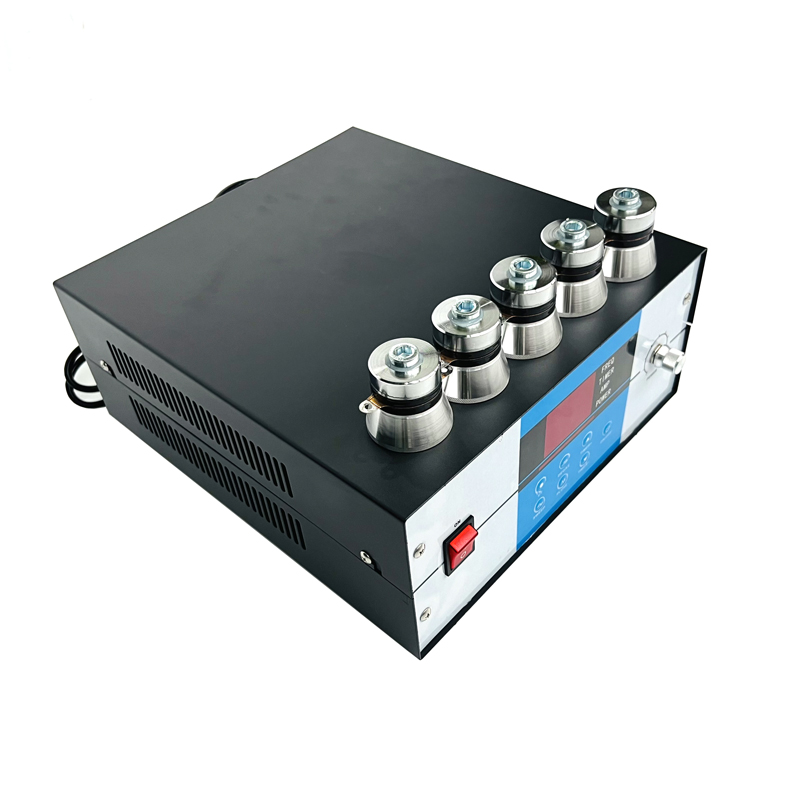

2000W 40khz 220V Ultrasonic Waves Generator cleaning transducer Box for high power cleaner machine

Category：Industry dynamics

2000W 40khz 220V Ultrasonic Waves Generator cleaning transducer Box for high power cleaner machine

1. The country's exclusive R&D and production of stepless adjustable frequency ultrasonic generator, which is adjustable to 15~80KHZ and accurate to 0.1KHZ, enables better output matching, achieves the best resonance effect under different working conditions, and has higher working efficiency.

2. The frequency automatic tracking function can be realized in real time under the working condition. Ensure that the generator can maintain automatic frequency tracking at any time when the transducer frequency changes in the case of changes in water temperature, number of workpieces, cleaning agent, etc., to achieve the best working state matching the transducer frequency.

3. The ultrasonic generator has the frequency sweeping function. By sweeping the ultrasonic frequency back and forth within a reasonable range during the cleaning process, it drives the cleaning solution to form a slight reflux, so that the workpiece dirt can be quickly taken away from the workpiece surface while being ultrasonic peeled, and the cleaning efficiency is improved.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
