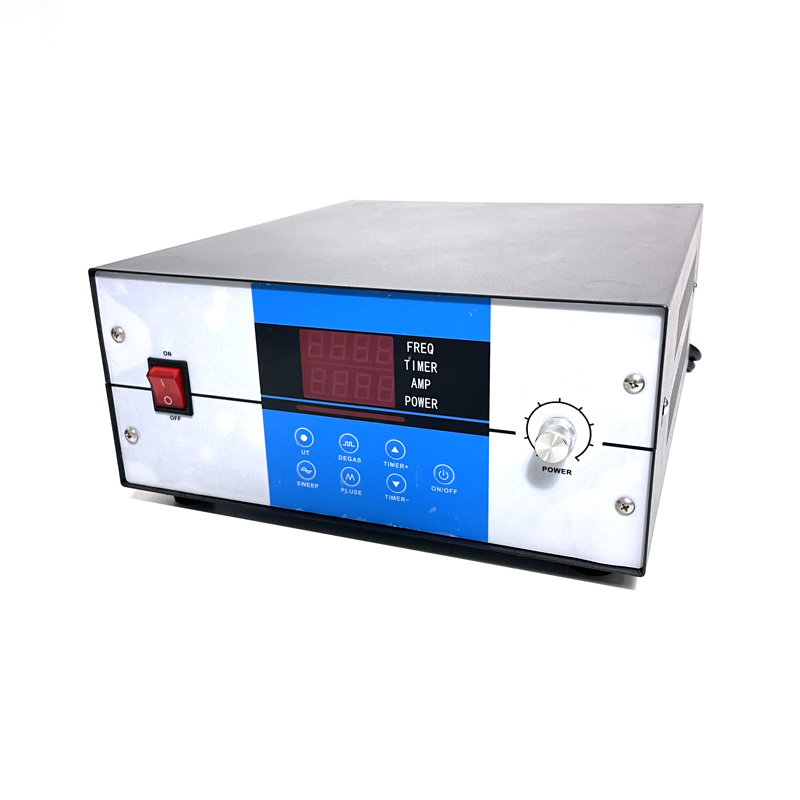

Electronic Box Ultrasound Generator Supply With Remote control For 3000W Industrial Cleaning Machine

Category：Industry dynamics

Electronic Box Ultrasound Generator Supply With Remote control For 3000W Industrial Cleaning Machine

Frequency range of ultrasonic generator:

The frequency is 20khz/28khz/40khz, that is, the frequency in the range of 20khz-45khz can be adjusted on one machine. 68khz-80khz-120khz and other high frequency machines generally require separate generators. Please consult our company for details.

Large power range:

300W-3000W, a single ultrasonic generator with large power of 3000w can be equipped with 50 60w vibrators.

In addition to the ultrasonic generator, the company also provides ultrasonic vibration head, ultrasonic vibration head glue, ultrasonic vibration plate and other ultrasonic accessories, and produces ultrasonic cleaning machines, ultrasonic vibration plates, small ultrasonic cleaning machines, and ultrasonic maintenance.

1、 Equipment:

1. Debugging is simple: the generator achieves "two steps to reach the target";

2. Uniform ultrasonic: uniform ultrasonic output in the cleaning industry;

3. Ultrasonic density: density ultrasonic output of cleaning industry;

4. Stable quality: the ultrasonic circuit board, which has been tested for ten years, is upgraded;

5. Service life: the ultrasonic generator with long service life at present.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
