20khz-40khz DIY Ultrasonic Waveform Generator For Submersible Ultrasonic Transducers Box Cleaning
Category：Industry dynamics

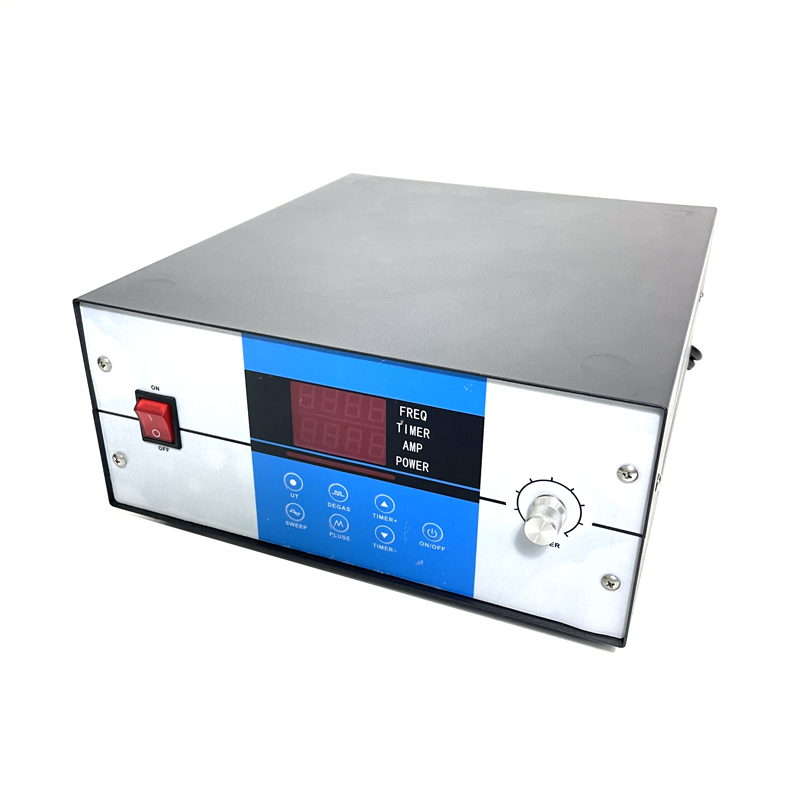

The ultrasonic generator
1. Ultrasonic generator is the core component of ultrasonic cleaning system, which is indispensable.
2. The shell of ultrasonic generator is white.
3. Power range of ultrasonic generator (with housing): small 300w, large 3000w, among which the range of 300w-3000w is optional.
4. The frequency of ultrasonic generator can be adjusted, but the casing shall be opened for adjustment; The power is adjustable, the timing is adjustable, and the frequency is swept.
5. After the generator of any vibration system is replaced, it needs to be opened for debugging. The debugging method is simple and can be operated under the guidance. If there is no debugging, it may not be effective.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
20khz-40khz DIY Ultrasonic Waveform Generator For Submersible Ultrasonic Transducers Box Cleaning
