50khz-135khz High Frequency Ultrasonic Cleaner Generator And Tranducer For Ultrasonic Cleaner

Category：Industry dynamics

50khz-135khz High Frequency Ultrasonic Cleaner Generator And Tranducer For Ultrasonic Cleaner

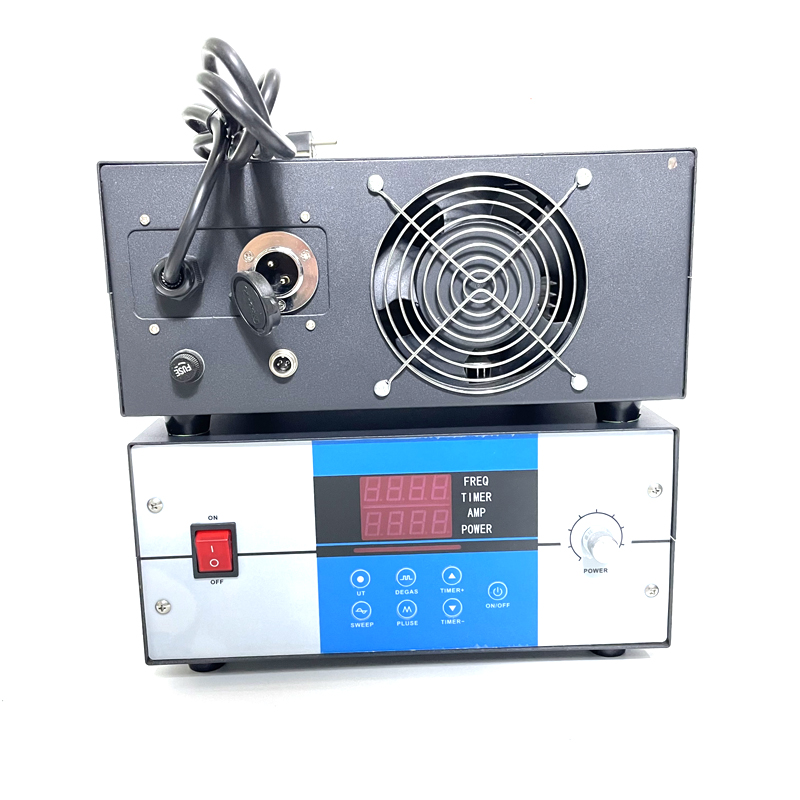

Thank you for using our ultrasonic generator. In order to improve the complex defects in the machine adjustment process, this machine has upgraded the circuit, program and components. After more than two years of repeated testing and factory practice, the new intelligent digital ultrasonic generator with complete functions and simple machine adjustment has been launched:

（1） With timing function, it can realize timing switch on and off;

（2） With frequency sweep function, it can realize frequency sweep washing;

（3） The ultrasonic frequency, output wattage and current can be displayed at the same time, which is more intuitive and clear;

（4） With overcurrent, overload and overheat protection functions;

（5） The machine adopts high-power IBGT amplification output to drive the transducer, which makes the ultrasonic wave more powerful in liquid cavitation;

（6） The machine adopts PWM control chip to achieve efficient dynamic response;

1. Timing range: 0-60 min. 2. Ambient temperature: 0-40 ℃ 3. Relative humidity: 40% - 90% 4. Maximum temperature: 60 ℃ 5. Adjustment range: 2% - 100% (press pause when shutting down for a short time)

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ

50khz-135khz High Frequency Ultrasonic Cleaner Generator And Tranducer For Ultrasonic Cleaner
