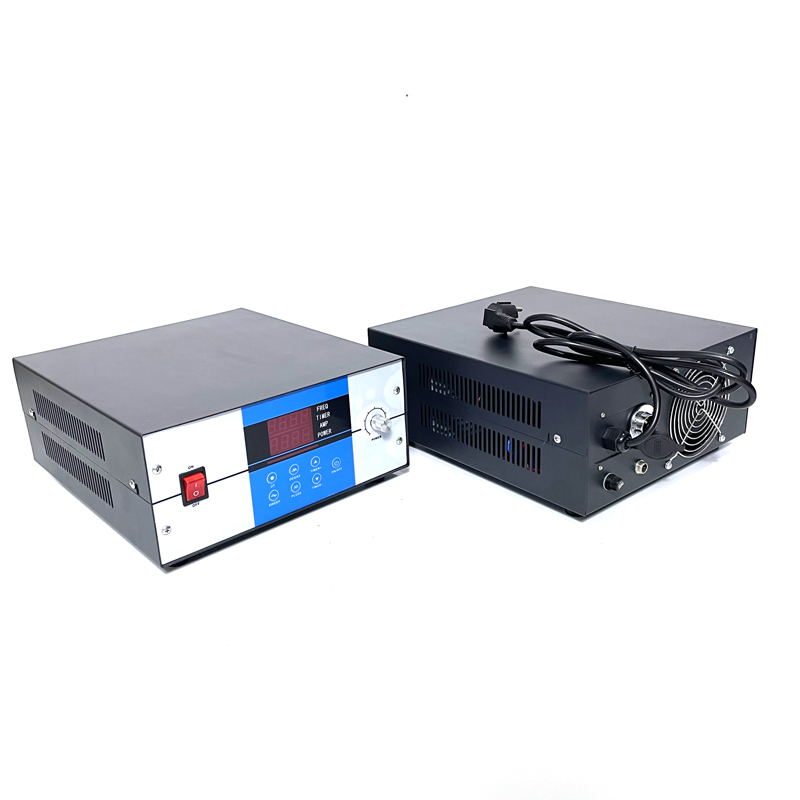

Pulse Ultrasonic Cleaner Generator Cleaning Power Supply For 40khz Piezo Transducer

Category：Industry dynamics

Pulse Ultrasonic Cleaner Generator Cleaning Power Supply For 40khz Piezo Transducer

Overview of ultrasonic power supply:

This product adopts advanced micro processing control and digital frequency synthesis technology. Adaptive frequency fuzzy control can meet the sweep width and speed of different ultrasonic transducers, so that the ultrasonic energy distribution is more uniform and the ultrasonic efficiency can be exerted at any time. The machine adopts anti-corrosion design and can be used in various harsh working environments. The energy conversion efficiency is high, and the temperature of the whole machine is low for a long time. The perfect protection function makes the work more reliable. Digital power regulation and time regulation are more convenient. It can also be equipped with a remote control port, which is convenient for application in the fully automated production line.

II Technical parameters:

Input voltage: 220V AC 50Hz

Output power: 0-3000W optional

Power control: 0-100% 16 level CNC adjustment

Time control: 0-59 minutes and 59 seconds

Ambient temperature: 0 --+65 ℃

Output harmonic parameter: 97% (Min)

Peak current (3000W load): ≤ 40A

Operating frequency: 20K-40KHz

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
