20khz Multi-function Ultrasonic Cleaner Generator Box For Industry Ultrasonic Transducer

Category：Industry dynamics

20khz Multi-function Ultrasonic Cleaner Generator Box For Industry Ultrasonic Transducer

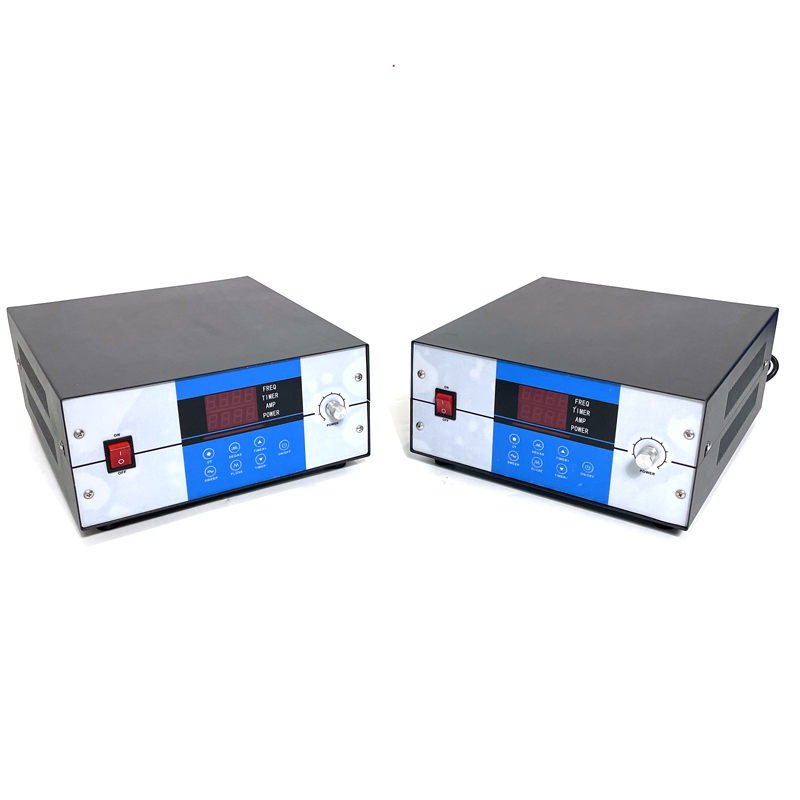

Internal structure of ultrasonic power supply: unique anti-corrosion design, not affected by the working environment, and suitable for various workplaces. Protection mode: vibrating head short circuit protection, leakage protection and other functions. The advanced ultrasonic circuit, complete structure and sensitive and reliable integrated control system ensure the stable operation of the ultrasonic cleaner under various loads. The generator is small in size, novel in appearance, and easy to operate. Its product quality and technical level are comparable to those of the same kind abroad. Once launched, it has been valued by peers and welcomed by users. All kinds of ultrasonic generators can work independently or can be used in parallel in multiple groups to complete large-scale cleaning projects. The maintenance is simple. A cooling fan is installed in the box for forced cold air to ensure the safety of long-term work.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ

20khz Multi-function Ultrasonic Cleaner Generator Box For Industry Ultrasonic Transducer
