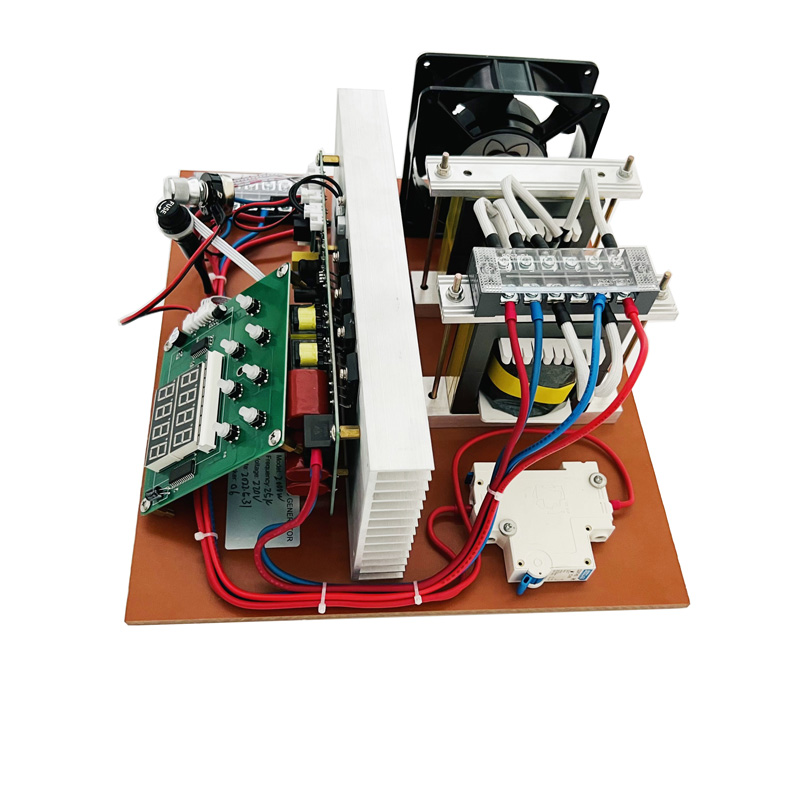

1500W-2500W Ultrasonic PCB Generator Circuit Control Board Driving Ultrasonic Cleaner Transducer
Category：Company news
The low-frequency ultrasonic PCB power circuit board is used to control the on-off of the ultrasonic transducer based on the input pulse signal. The pulse signal of different high and low levels will affect the on-off of ultrasonic transducer. When the input pulse signal is high level signal, the ultrasonic transducer is connected to the high voltage power supply; when the input pulse signal is low level signal, the ultrasonic transducer is disconnected from the high voltage power supply.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
1500W-2500W Ultrasonic PCB Generator Circuit Control Board Driving Ultrasonic Cleaner Transducer
