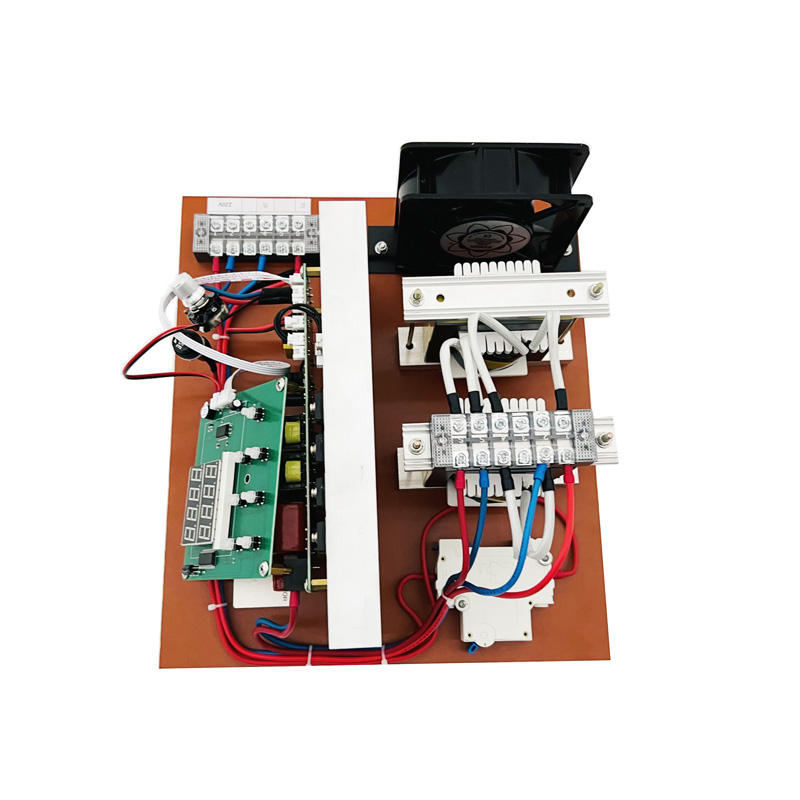

600W-1200W Ultrasonic PCB Generator Driver Ultrasonic Cleaning Transducer PCB Circuit With Digital Panel
Category：Company news
The low-frequency ultrasonic PCB power circuit board is designed to keep the ultrasonic transducer at resonant frequency during operation. Due to the fact that the ultrasonic transducer operates at a resonant frequency, which is an important condition for ensuring energy output, the resonant circuit is connected to the ultrasonic transducer to stabilize it at the resonant frequency during operation, thereby improving the efficiency of the ultrasonic transducer.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
600W-1200W Ultrasonic PCB Generator Driver Ultrasonic Cleaning Transducer PCB Circuit With Digital Panel
