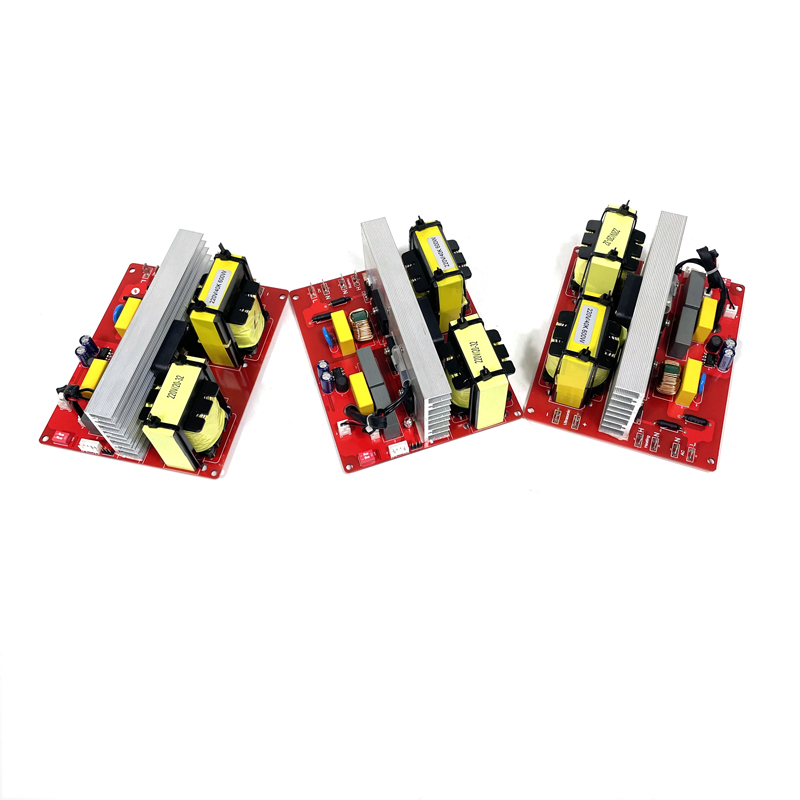

Ultrasonic Digital PCB Circuit Board With Cleaning Transducer For Industrial Cleaner Generator
Category：Company news
The utility model for ultrasonic cleaning circuit boards has a reasonable structure setting, fast heat dissipation speed, small heat impact on electrical accessories, and long service life. The working frequency of the ultrasonic cleaning circuit board is automatically tracked, resulting in better output matching. The tracking frequency is wide, and the output power is adaptive to the load, with high efficiency, excellent energy conservation, small size, and high power. The frequency can be adjusted from 20khz to 40khz, and the power can be 300W-3000W.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
Ultrasonic Digital PCB Circuit Board With Cleaning Transducer For Industrial Cleaner Generator
