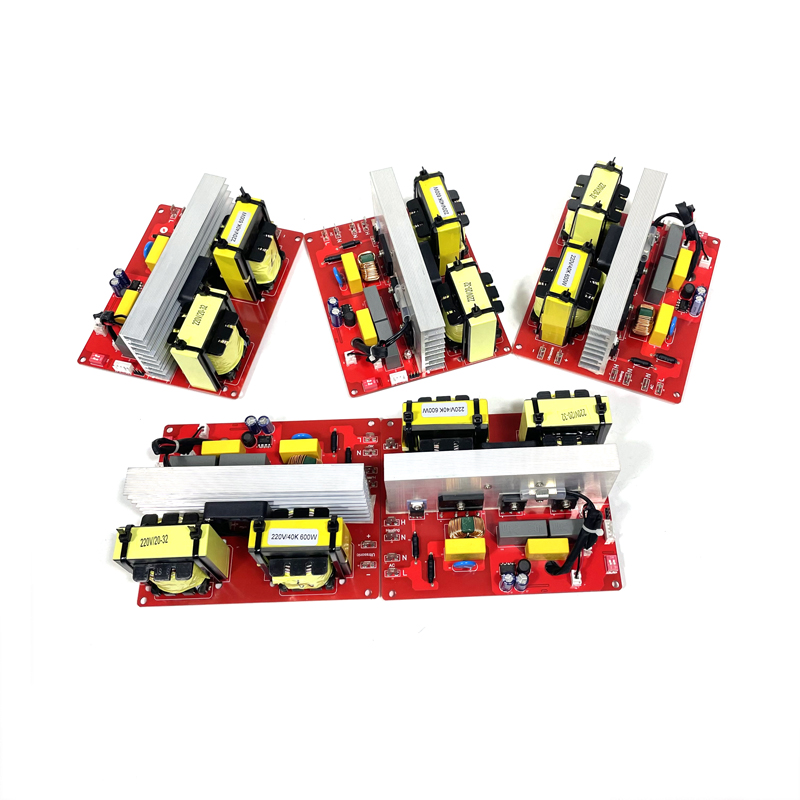

300W Ultrasonic PCB Board Generator Drive Cleaning Transducer Ultrasonic Digital Circuit Board
Category：Company news
Layout structure of ultrasonic cleaning circuit board, including power supply, impedance adjustment circuit, transducer circuit, control circuit, data acquisition circuit, and interface circuit; The control circuits are respectively connected to a power supply, an impedance adjustment circuit, a transducer circuit, and a data acquisition circuit. The power integrated circuit on this circuit board is connected to the ARM processor S3C2440 connected to this power integrated circuit.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
300W Ultrasonic PCB Board Generator Drive Cleaning Transducer Ultrasonic Digital Circuit Board
