The main processor selection model for the research and design of the ultrasonic switch circuit board circuit is MC9S08, and the cleaning mechanism is the ultrasonic generator, ultrasonic transducer, and cleaning water tank. The circuit of the Ultrasonic cleaning comprises a microprocessor, a switch, a signal conditioning unit, a driving unit, a cleaning mechanism and an indicator light, wherein the output end of the switch is connected with the input end of the microprocessor, the output end of the microprocessor 2 is connected with the input end of the signal conditioning circuit, the output end of the signal conditioning circuit is connected with the input end of the driving unit, and the output end of the driving unit is connected with the cleaning mechanism, The output end of the microprocessor is connected to the input end of the indicator light.

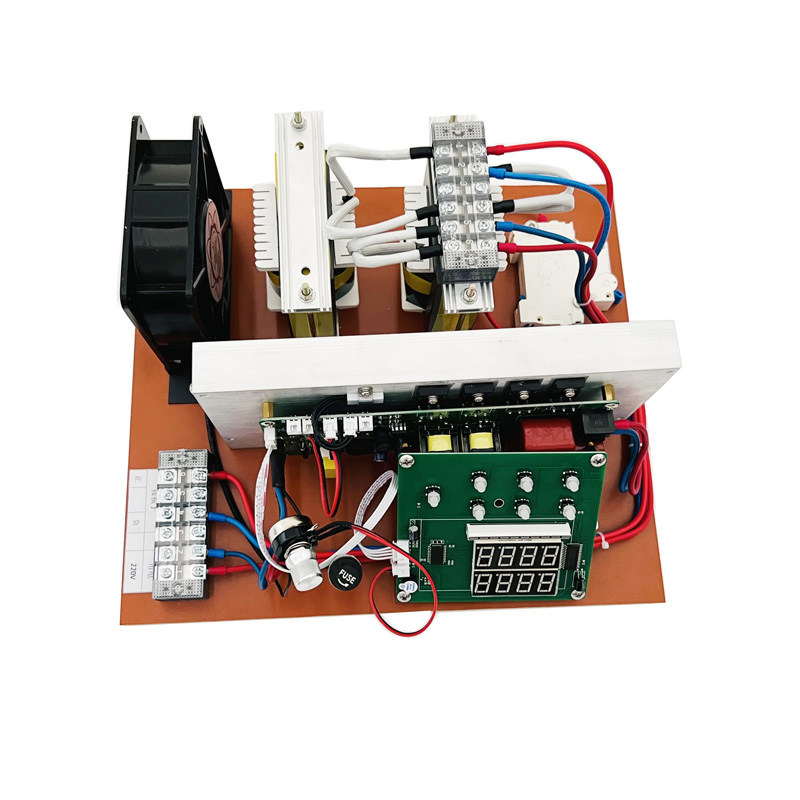

Customized Ultrasonic Circuit Board 1800W 40KHz PCB Ultrasonic Cleaning Generator
