The ultrasonic switch circuit board circuit is a microcontroller based design that includes a microprocessor, switch, signal conditioning unit, driving unit, cleaning mechanism, and indicator light. The output end of the switch is connected to the input end of the microprocessor, the output end of the microprocessor 2 is connected to the input end of the signal conditioning circuit, and the output end of the signal conditioning circuit is connected to the input end of the driving unit, The output end of the driving unit is connected to the cleaning mechanism, and the output end of the microprocessor is connected to the input end of the indicator light. The Ultrasonic cleaning has the advantages of simple circuit structure, stable performance and good cleaning effect.

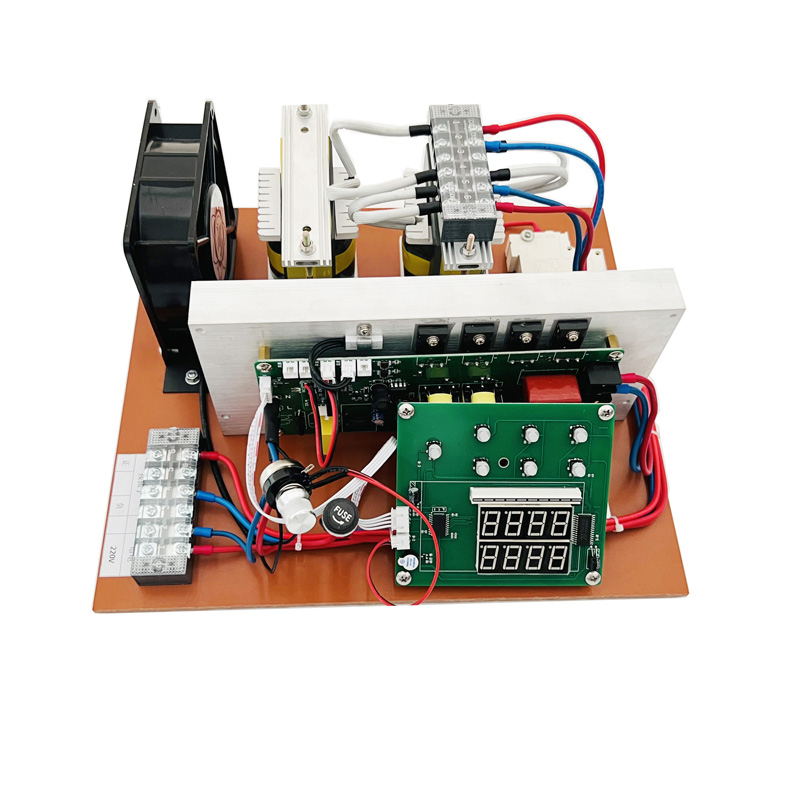

Digital Automatic Frequency Tracking Ultrasonic PCB Generator Industrial Ultrasound Cleaning Machine
