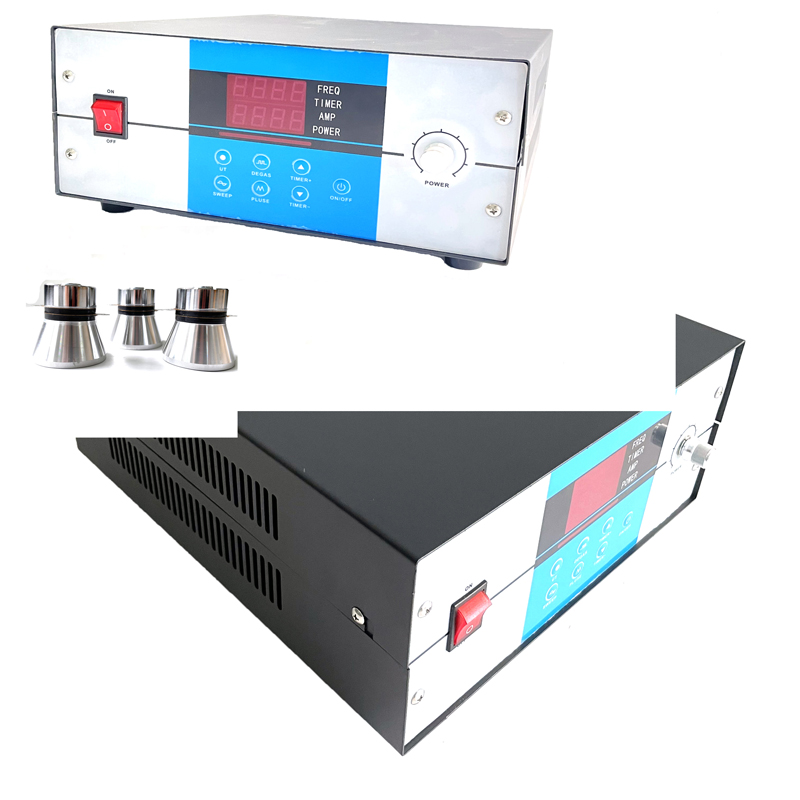

900W 40khz-28khz Piezoelectric Ultrasonic Bath Generator For ultrasonic cleaner Vibrating plate box
Category：Company news
The ultrasonic cleaning power supply uses the IGBT power module with the best withstand voltage and current characteristics as the switch output device, and uses the "adaptive indefinite number unidirectional frequency sweep" algorithm developed exclusively in China. In addition to the characteristics of stable output, simple operation, and good controllability, the special algorithm is adopted, so the transducer has a long life and good cleaning effect.
In general, the load of ultrasonic cleaning is a transducer array composed of multiple sandwich transducers. After cementation, the frequency is distributed within a certain range. At present, the industry usually adopts two methods. One is to use the "frequency tracking" technology to find a working point and work near the working point according to a certain algorithm (many times based on the output power). One is to use frequency sweeping technology to specify a bandwidth, and the frequency modulated signal scans back and forth within the bandwidth of the transducer array.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
900W 40khz-28khz Piezoelectric Ultrasonic Bath Generator For ultrasonic cleaner Vibrating plate box
