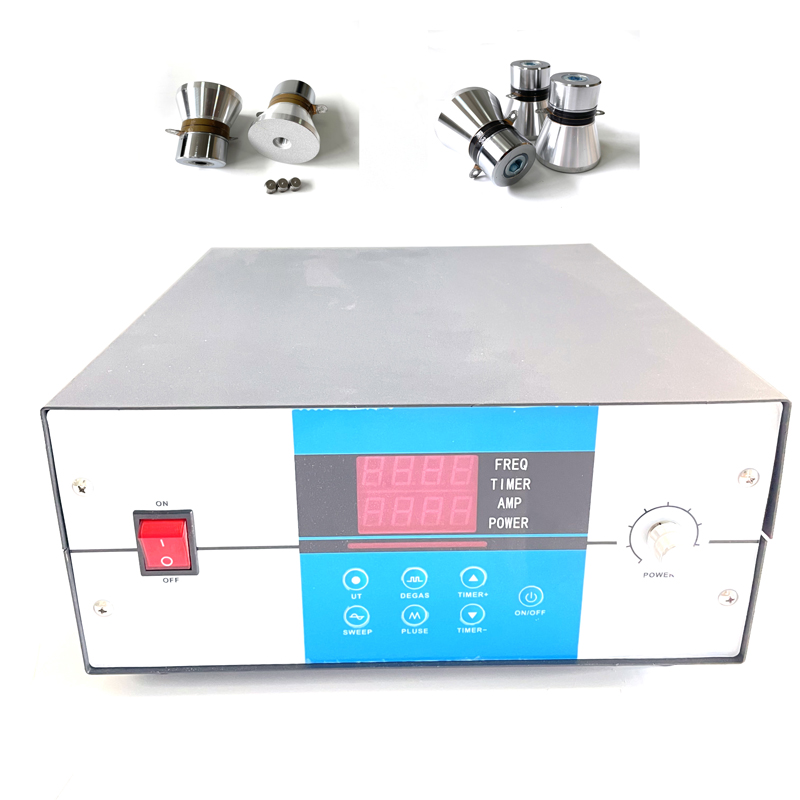

1200W 40khz Household Piezoelectric Ultrasonic Transducer Generator For Vegetable washing machine

Category：Company news

1200W 40khz Household Piezoelectric Ultrasonic Transducer Generator For Vegetable washing machine

The importance of frequency tracking: it is a difficult problem that has plagued the application of ultrasonic machining technology for a long time. Without frequency tracking, the transducer will not work continuously and normally. Because the changing working conditions often cause the change of the resonant frequency of the transducer, which makes the vibration of the system detuned and the amplitude reduced. At the same time, when the transducer works in the detuning state, the temperature of the acoustic system will rise and the amplitude will drop exponentially, causing a vicious circle. This will not only affect the processing speed, but also affect the processing quality, shorten the life of the ultrasonic generator, and even cause the transducer to burn out due to overheating.

Manufacturers sell ultrasonic generator, ultrasonic power supply, ultrasonic electric box, ultrasonic control box, ultrasonic control cabinet, ultrasonic power source, ultrasonic power box, ultrasonic generator power supply, ultrasonic vibrator, vibration box

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
