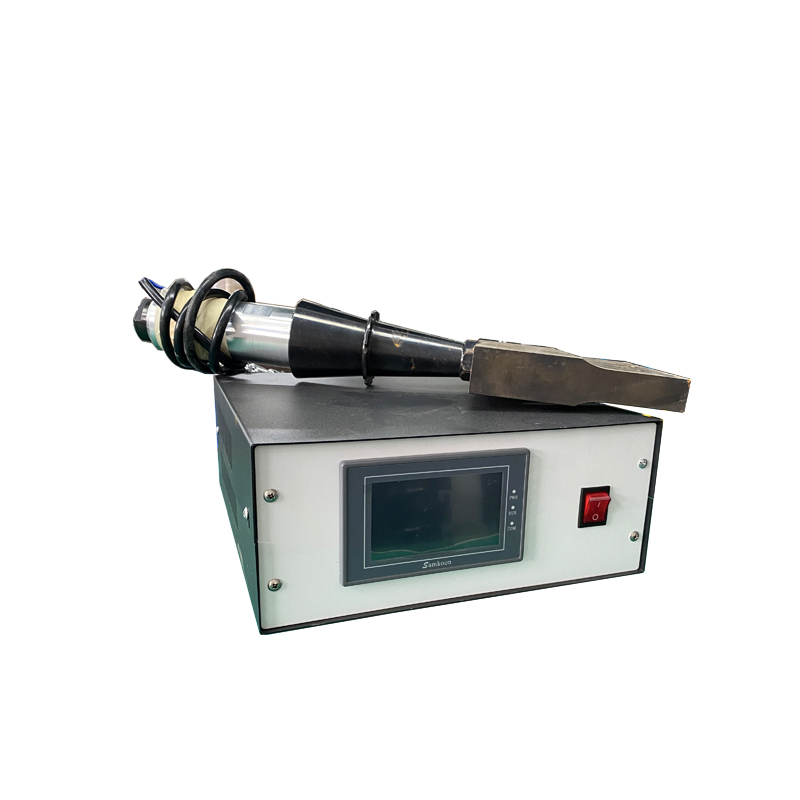

1000W 15KHZ High Power Ultrasonic Plastic Welding Transducer And Generator For Plastic Welder
Category：Industry dynamics
The ultrasonic welding transducer produced by the company is a mechanical product elaborately designed and processed with piezoelectric ceramic elements and imported materials. At the same time, the ultrasonic transducer also has large amplitude, high electroacoustic conversion rate, stable operating voltage, air, underwater operation, low heat generation, high reliability, convenient installation, normal specifications and parameters, stable performance, power circuit control, sensor and generator damage protection High output efficiency, stable switch structure, normal heating temperature, long service life, etc.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power (W) |
| PLS-HJHNQ152600 | 153 | M20×1.5 | 15 | 15 | 13000 | 2600 |
| PLS-HJHNQ152000 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| PLS-HJHNQ202000 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| PLS-HJHNQ30500 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| PLS-HJHNQ28200 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| PLS-HJHNQ28100 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| PLS-HJHNQ28250 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| PLS-HJHNQ202000 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| PLS-HJHNQ201500 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| PLS-HJHNQ38100 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| PLS-HJHNQ38200 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
1000W 15KHZ High Power Ultrasonic Plastic Welding Transducer And Generator For Plastic Welder
