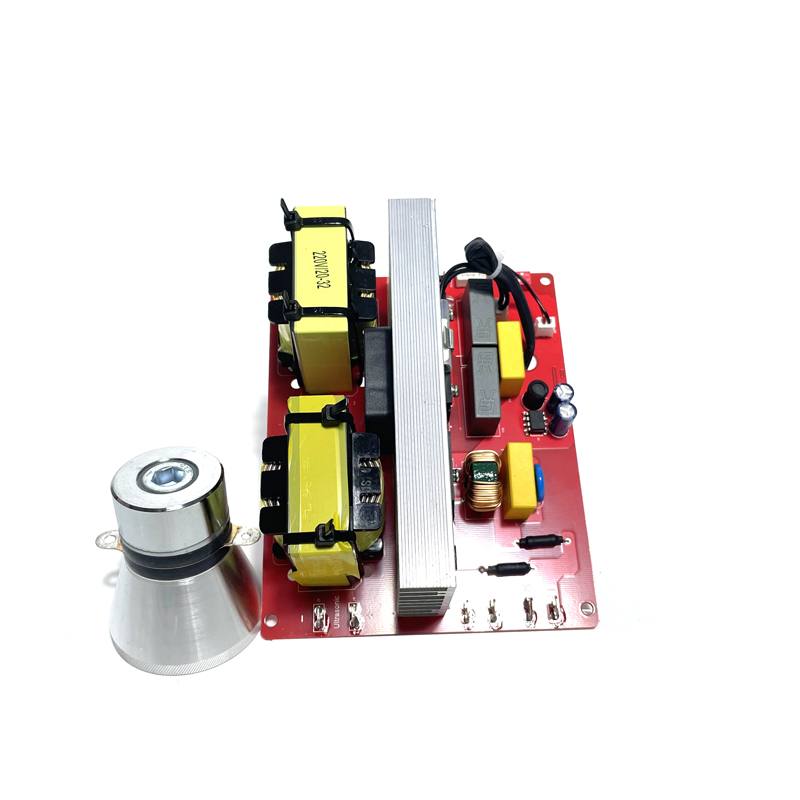

200W 28KHZ Pulse Ultrasonic PCB Circuit Board Drivers Cleaning Transducer
Category：Industry dynamics
Embedded system is used as the control core of PCB circuit board driven by ultrasonic transducer, and domestic high-power tube is used as the output driver of PCB. In addition to having all the requirements of high reliability, long life, high insulation safety, electromagnetic compatibility and low noise for general electronic products, the ultrasonic transducer driven PCB circuit board has all the functions of power regulation, frequency tracking, frequency automation, alarm, timing and temperature control required for transducer matching.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60 | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
