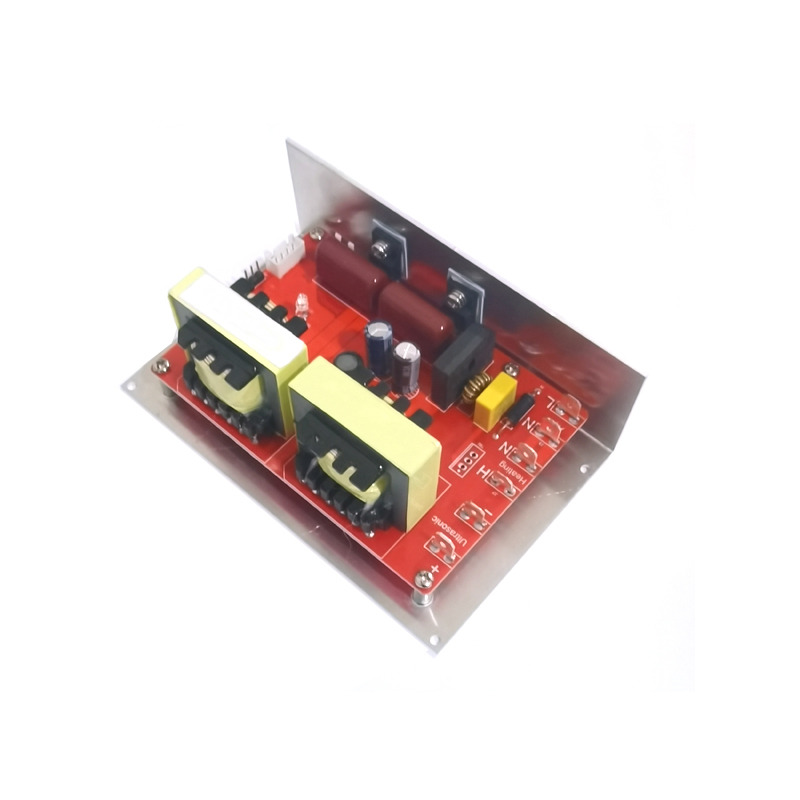

100W 110V Ultrasonic Cleaner Driver Board Transducer Power Generator
Category：Industry dynamics
Features of high-power ultrasonic driving circuit board:
The ultrasonic power is 10% - 100% adjustable, the maximum power is designed as 3000W, and the minimum power is 200W
The ultrasonic frequency is adjustable from 20khz to 120khz, and the domestic advanced frequency sweeping mode is adopted.
The ultrasonic current 0.5-10A is adjustable, and the high-power ultrasonic driving circuit board adopts constant power output.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60 | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
