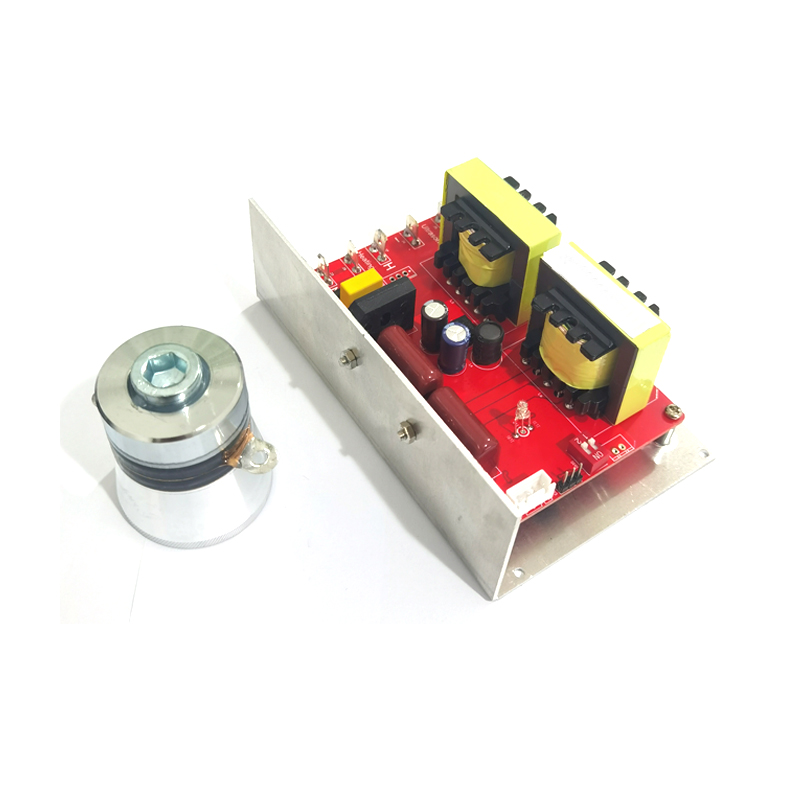

100W 220V Ultrasonic Cleaner Power Driver Board Transducer
Category：Industry dynamics
The low-power ultrasonic driving circuit board uses a self-excited ultrasonic driving circuit board, which has no core functional components. The low-power ultrasonic driving circuit board is generally used in small digital ultrasonic cleaning machines or household ultrasonic cleaning machines. The main features of the low-power ultrasonic driving circuit board are simple circuit, simple maintenance and low price.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60 | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
100W 220V Ultrasonic Cleaner Power Driver Board Transducer
