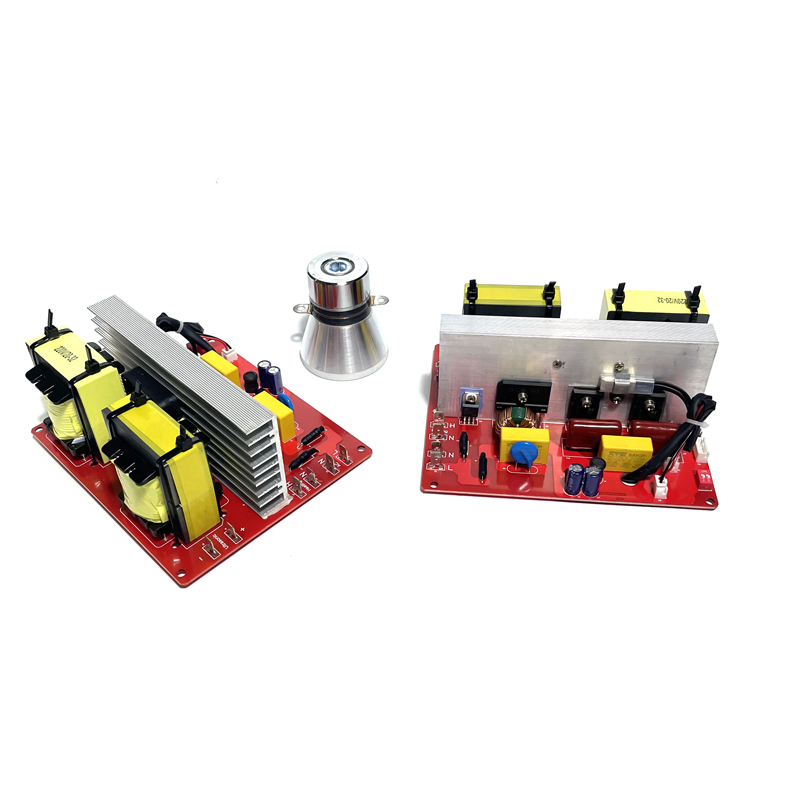

28KHZ 100W Ultrasonic PCB Generator Pizeo Driver Ultrasonic Generator Circuit Board
Category：Industry dynamics
Ultrasonic cleaning vibrator needs to convert electrical energy into ultrasonic mechanical energy. There are many ultrasonic signal generator circuits, including self-excited oscillator, separately excited oscillator, self tracking, phase-locked loop oscillator circuit, etc. The working principle of the ultrasonic self-excited oscillation circuit is that after AC220V bridge rectifier and capacitor filter, the DC excitation voltage of about 300V is obtained to drive the ultrasonic transducer, and the ultrasonic transducer generates vibration frequency for cleaning industrial workpieces.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
28KHZ 100W Ultrasonic PCB Generator Pizeo Driver Ultrasonic Generator Circuit Board
