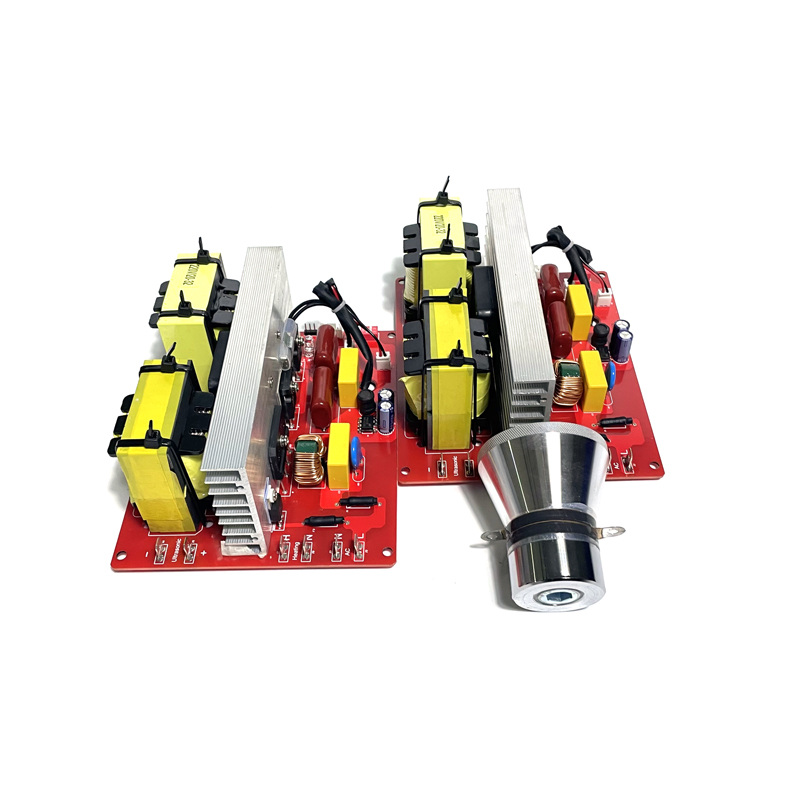

1000W 28khz-40khz High Power Ultrasonic PCB Drive Board Generator
Category：Industry dynamics
The ultrasonic control circuit board is driven by high-power IGB, with strong output power; The domestic advanced self-excited control technology is used to greatly improve the ultrasonic density and intensity, and the cleaning effect is more refined and the cleanliness is higher. The appearance design of the ultrasonic control circuit board is more concise, reducing the number of parts and reducing the failure rate. The ultrasonic control circuit board is easy to debug and adaptive. The ultrasonic control circuit board is suitable for integrated ultrasonic cleaning machine and integrated cabinet control
Main parameters of ultrasonic control circuit board:
Voltage: 110V-120V 60HZ, 220V-240V 50HZ
Power: 200W 300W 400W 500W 600W 700W
Frequency: 20khz 25khz 28khz 30khz 33khz 40khz 50khz 54khz
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
