In order to improve the complex defects in the machine adjustment process, this machine has upgraded the circuit, program and components. After more than two years of repeated testing and factory practice, the new intelligent digital ultrasonic generator with complete functions and simple machine adjustment has been launched:

（1） With timing function, it can realize timing switch on and off;

（2） With frequency sweep function, it can realize frequency sweep washing;

（3） The ultrasonic frequency, output wattage and current can be displayed at the same time, which is more intuitive and clear;

（4） With overcurrent, overload and overheat protection functions;

（5） The machine adopts high-power IBGT amplification output to drive the transducer, which makes the ultrasonic wave more powerful in liquid cavitation;

（6） The machine adopts PWM control chip to achieve efficient dynamic response;

1. Timing range: 0-60 min. 2. Ambient temperature: 0-40 ℃ 3. Relative humidity: 40% - 90% 4. Maximum temperature: 60 ℃ 5. Adjustment range: 2% - 100% (press pause when shutting down for a short time)

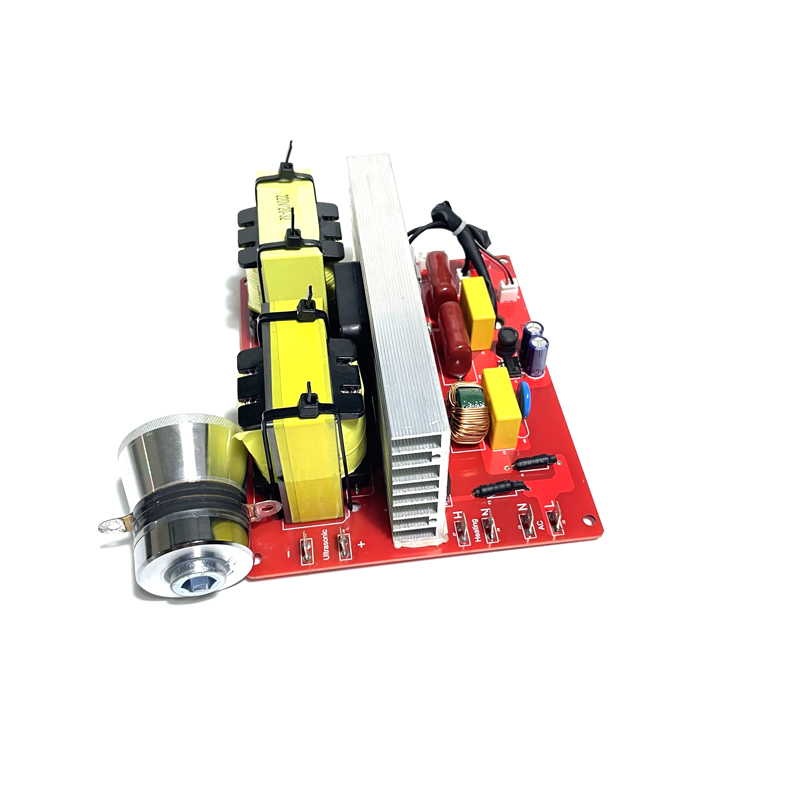

2000W-3000W 40khz Ultrasonic Power PCB Generator With Cleaning Machine Transducer
