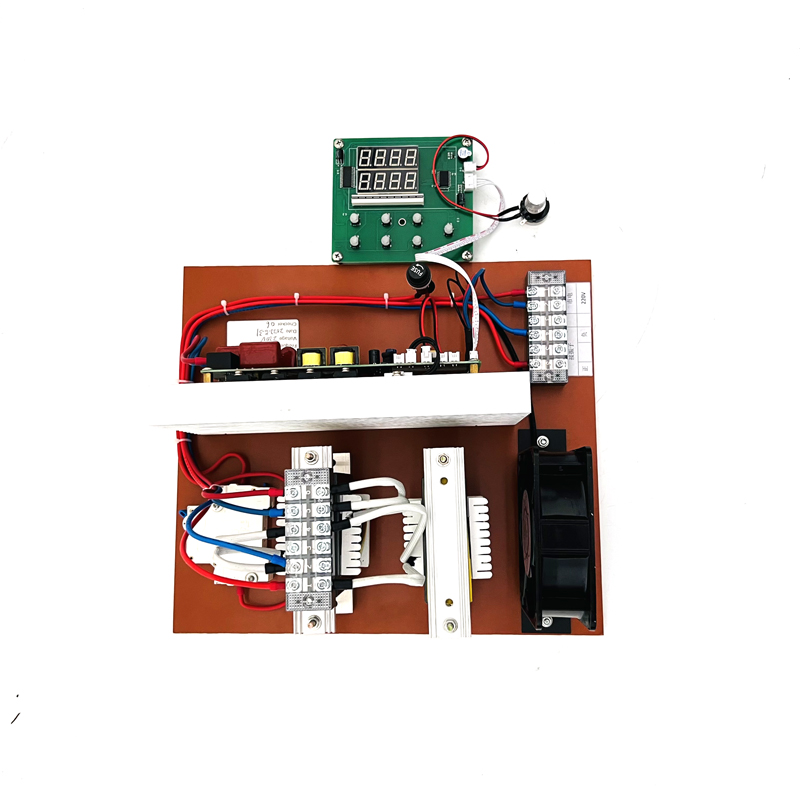

3000W 20khz-28khz Ultrasonic Frequency Generator Module Push away for Industrial Parts/medical/laboratory

Category：Industry dynamics

3000W 20khz-28khz Ultrasonic Frequency Generator Module Push away for Industrial Parts/medical/laboratory

In order to improve the complex defects of the tuning step, the ultrasonic power cleaning generator of the transducer upgrades and updates the circuit, program and components, and has the power adjustable function. The generator adopts a safe voltage regulating mode. The ultrasonic power cleaning generator of the transducer adjusts the output power of the ultrasonic wave generator steplessly. The frequency modulation mode is changed to adjust the power. The adjustment mode can be specified according to the needs. The ultrasonic power cleaning generator of the transducer has the frequency adjustable function, that is, one generator can adjust multiple frequency bands for use.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

3000W 20khz-28khz Ultrasonic Frequency Generator Module Push away for Industrial Parts/medical/laboratory
