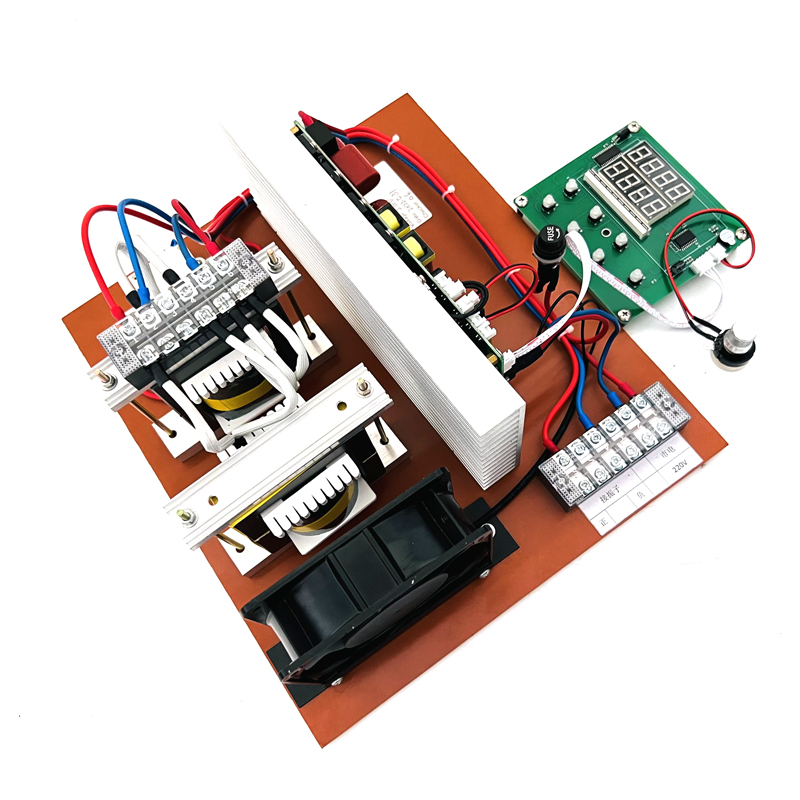

Auto Frequency Tracking Ultrasonic Frequency Generator for 3000W 28khz Ultrasonic Washing Machine
Category：Industry dynamics
The ultrasonic cleaning system is mainly composed of three parts: ultrasonic pulse generator power supply+ultrasonic cleaning transducer (i.e. ultrasonic vibrator)+stainless steel cleaning tank, among which the transducer and generator are extremely important and directly affect the ultrasonic cleaning effect. The power supply of the ultrasonic pulse generator generates a signal with a specific frequency, which can be either a sine signal or a pulse signal. The frequency of the signal is reached to a certain value through the power supply of the ultrasonic pulse generator. This specific frequency is the oblique vibration frequency of the transducer. Generally, the ultrasonic frequencies used by the ultrasonic pulse generator power supply in the ultrasonic cleaning equipment are 25KHz, 28KHz, 40KHz, 80KHz.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
Auto Frequency Tracking Ultrasonic Frequency Generator for 3000W 28khz Ultrasonic Washing Machine
