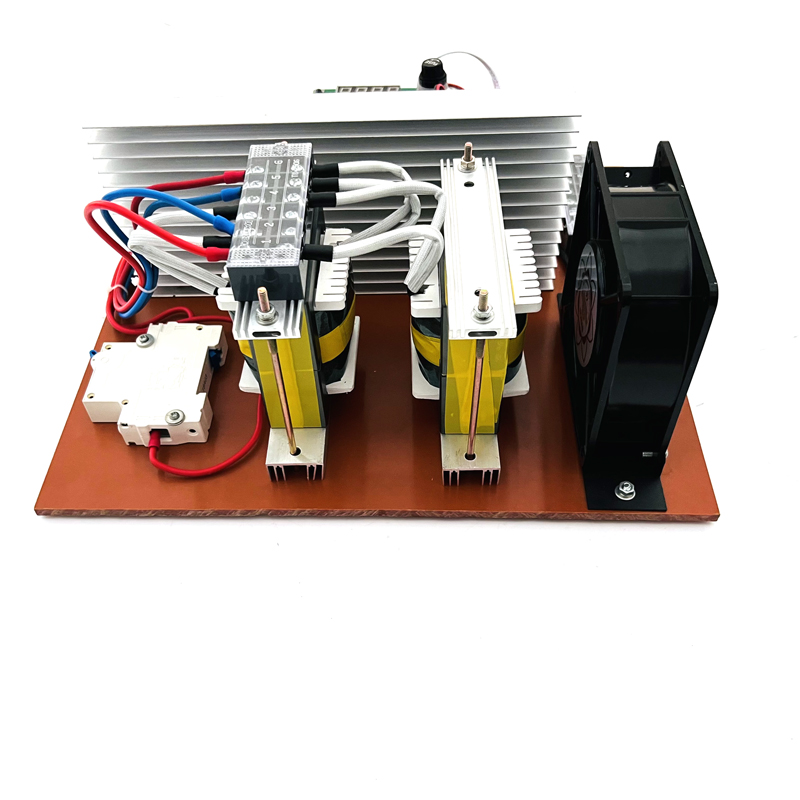

Industrial Ultrasonic Frequency Generator with digital display feedback module for Cleaning machine
Category：Industry dynamics
The ultrasonic motherboard has perfect multi-layer protection circuit. The over temperature, over voltage, low voltage, over current, and short circuit protection can monitor the problems that may occur to the generator in real time, so that the generator can work more stably at high frequencies and the power tube temperature is lower. The high frequency has a unique frequency buffeting technology. The ultrasonic motherboard can achieve the best cleaning effect at high frequencies.
The ultrasonic motherboard is equipped with PLC and RS485, which can enable several generators to work synchronously, further reducing the working noise of high-power machines and improving the stability
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
