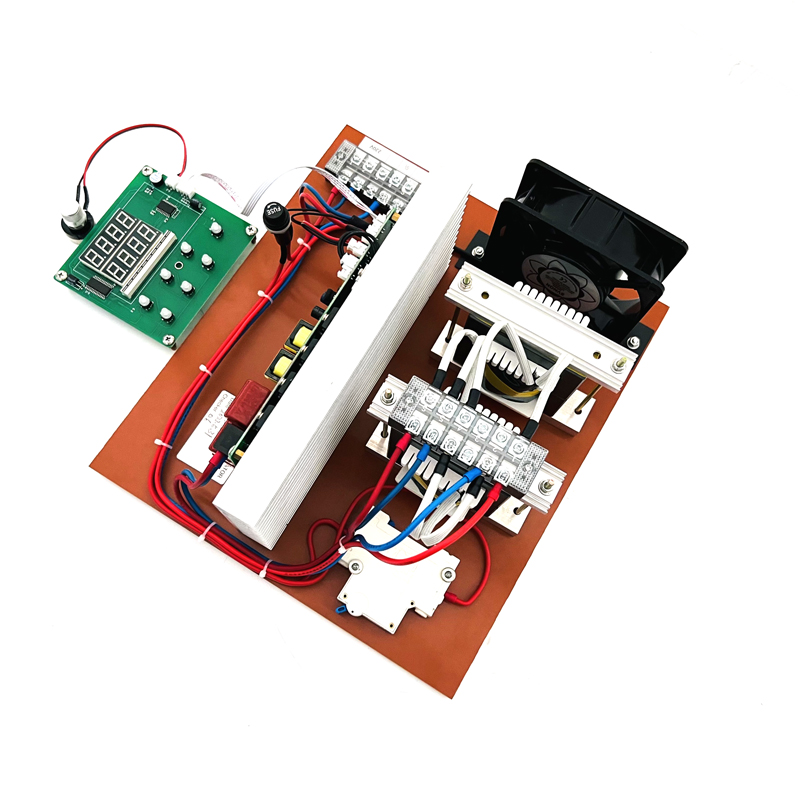

1500W 17khz-40khz Ultrasonic Frequency Generator with Piezoelectric trasnducer for Remove oil, rust and stains

Category：Industry dynamics

1500W 17khz-40khz Ultrasonic Frequency Generator with Piezoelectric trasnducer for Remove oil, rust and stains

Ultrasonic other exciting power generator is mainly used in industrial ultrasonic cleaning equipment, industrial ultrasonic cleaning machine, multi slot ultrasonic cleaning machine, household dishwasher, single slot ultrasonic cleaning machine, industrial ultrasonic vibrating plate, full-automatic ultrasonic cleaning equipment, etc

When the high-power ultrasonic generator power supply is working, the real-time frequency tracking function ensures that the high-power ultrasonic generator power supply can maintain automatic frequency tracking at any time when the frequency of the ultrasonic transducer changes in the case of changes in water temperature, number of workpieces, cleaning agent, etc., to achieve the best working state matching the resonant frequency of the ultrasonic transducer.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
