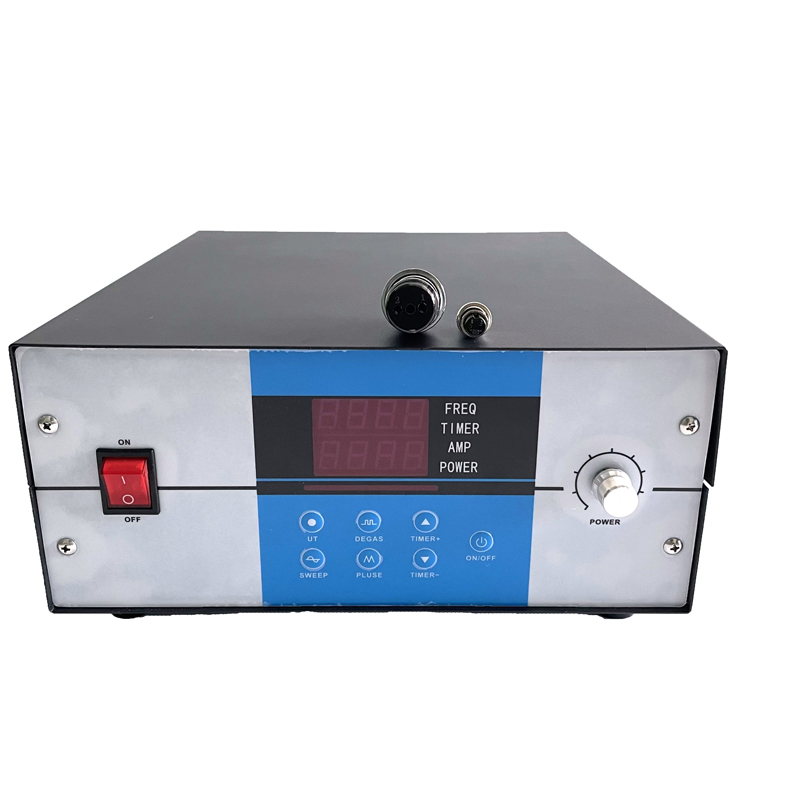

28khz-40khz Ultrasonic Waves Piezoelectric Generator Driver Transducer For Auto Parts Washing Machine

Category:Industry dynamics

28khz-40khz Ultrasonic Waves Piezoelectric Generator Driver Transducer For Auto Parts Washing Machine

safeguard


1. Comprehensive protection (over-current protection, overheating protection, over-voltage protection, anti-corrosion and dust-proof protection, etc.),


2. The high and low voltage circuits are completely separated, with safe operation and strong resistance to interference.


Simple operation and maintenance


1. The LED and LCD display windows can intuitively grasp the operation status of the whole machine.


2. The output power can be adjusted, the cleaning time can be set arbitrarily, and the frequency can be adjusted to meet the cleaning needs of different products.


3. Generators with different frequencies, powers and functions can be designed and manufactured according to customer requirements External remote control system can be connected to operate the technological process through the network.


4. It is equipped with time display control, power display adjustable, frequency adjustable and other functions.


5. It can be maintained by itself without professional personnel. It is easy to operate and provides lifelong technical support


Longer life


1. High efficiency and unique cooling air duct, anti-corrosion design, adapt to the humid and corrosive environment for long-term work.


2. When the transducer is abnormal, the power output is abnormal, and the temperature is abnormal, it will automatically stop for protection, greatly extending the service life.


3. High quality components imported from the United States and Japan are impact resistant and stable in output.

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

PLS-QXDY-300

300W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

PLS-QXDY-600

600W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

PLS-QXDY-900

900W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

PLS-QXDY-1000

1000W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

PLS-QXDY-1200

1200W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

PLS-QXDY-1500

1500W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

PLS-QXDY-1800

1800W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

PLS-QXDY-2000

2000W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

PLS-QXDY-2400

2400W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

PLS-QXDY-3000

3000W

17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ

High Frequency

100W-300W

175-200KHZ

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request


28khz-40khz Ultrasonic Waves Piezoelectric Generator Driver Transducer For Auto Parts Washing Machine
