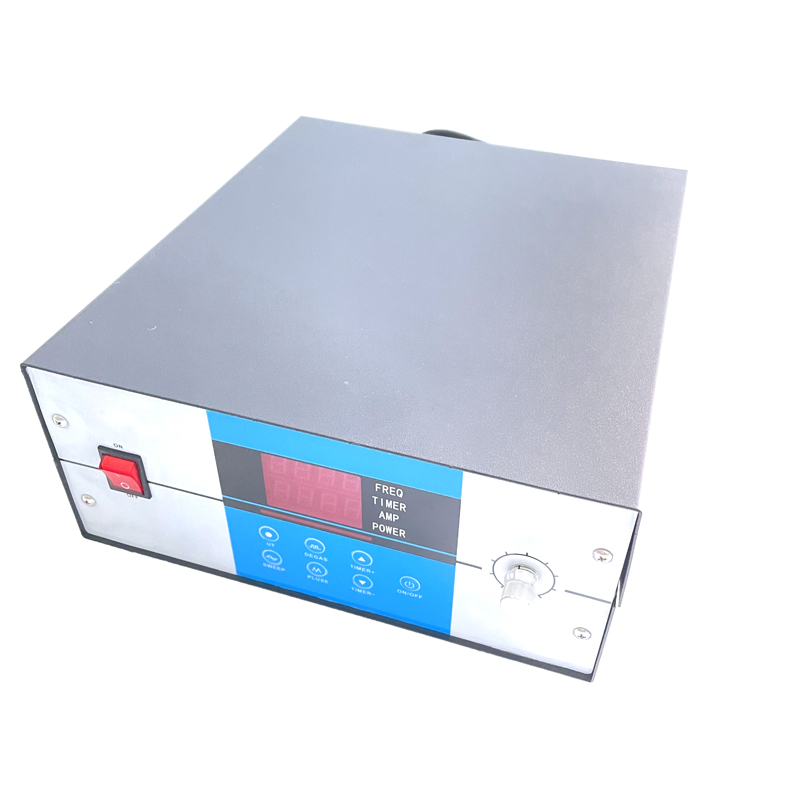

20khz-40khz Digital Control Ultrasound Generator Cleaner Box For 1800W Industrial Cleaning Bath

Category：Industry dynamics

20khz-40khz Digital Control Ultrasound Generator Cleaner Box For 1800W Industrial Cleaning Bath

A digital ultrasonic generator, which includes a rectifier filter circuit, an inverter circuit, a matching circuit, and a transducer connected in turn, and also includes an oscillation and drive circuit that outputs control signals to power switches in the inverter circuit. The inverter circuit is a half bridge inverter circuit; The utility model is characterized in that the utility model also comprises a control unit, which forms a frequency automatic tracking system of a single chip computer. The frequency conversion search mode is adopted, so that the current input into the half bridge inverter circuit is always kept at the maximum value, thus ensuring that the transducer always works in a resonant state; A current detection circuit that detects the current input to the rectifier filter circuit and outputs a current detection signal to the control unit; A first digital potentiometer is connected with the frequency tracking signal output end of the control unit and outputs a frequency adjustment signal to the oscillation and drive circuit; And an input key connected with the control unit.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

20khz-40khz Digital Control Ultrasound Generator Cleaner Box For 1800W Industrial Cleaning Bath
