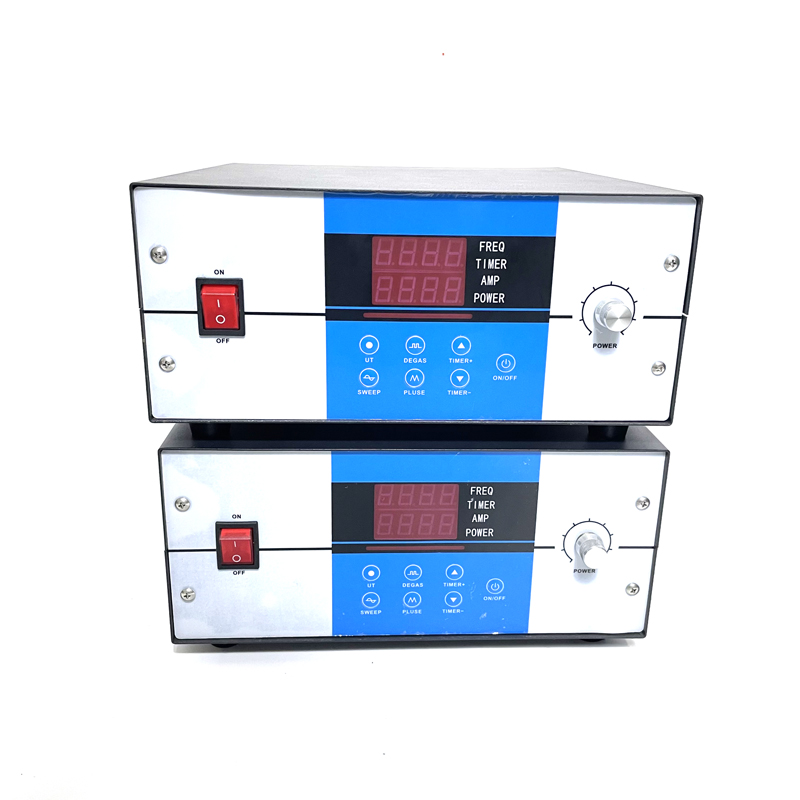

Simple DIY Ultrasonic Wave Generator 300W-1200W Power For Industrial Parts Mould Cleaning Equipment

Category：Industry dynamics

Simple DIY Ultrasonic Wave Generator 300W-1200W Power For Industrial Parts Mould Cleaning Equipment

（1） With timing function, the ultrasonic cleaning can be timed for 60 minutes;

（2） With frequency sweeping function, it can realize frequency sweeping and cleaning.

（3） Digital display of ultrasonic frequency or output power, more specific and intuitive, convenient for observation and recording of data;

（4） . It has overvoltage, overcurrent and overheating protection functions to prevent tube burning and plate burning and reduce generator damage;

（5） The output effective power is more than 98%;

（6） All important components are imported electronic components with original packaging.

（7） PLC control switch can be connected externally, and remote control can be added.

（8） The ultrasonic power and frequency can be continuously adjusted;

（9） Full touch button, humanized design;

（10） Constant power output stability technology, the output power is constant and not affected by the load, protecting the equipment.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
