28khz Digital Control Ultrasonic Cleaner Generator For Cleaning Equipment

Category：Industry dynamics

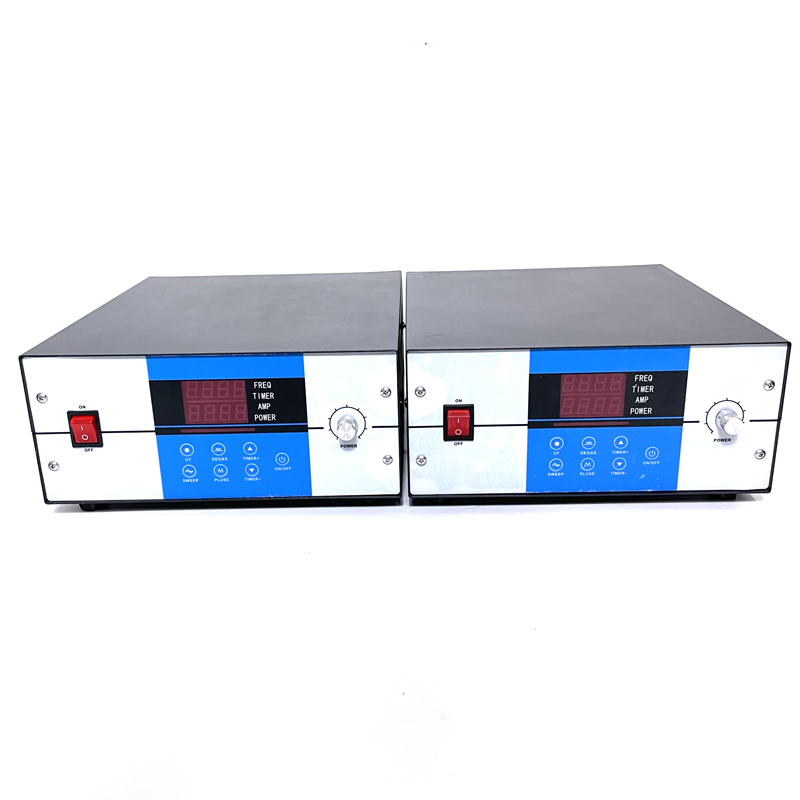

28khz Digital Control Ultrasonic Cleaner Generator For Cleaning Equipment

The vibrating signal with frequency higher than 20kh is amplified electrically by the ultrasonic generator, and the sound radiation through the clear medium after vibration. Instantaneous high-pressure explosion, namely cavitation effect, can make molecules of cleaning solution vibrate and produce countless tiny bubbles and thousands of atmospheric pressures on the surface of objects. The dirt attached to the surface is automatically peeled off. No dead angle omni-directional cleaning is incomparable with other cleaning methods. The workpiece surface shall not be damaged.

Advantages of machine and equipment cleaning:

◆ Good cleaning effect, high cleanliness and consistent cleanliness of all workpieces

◆ Fast cleaning speed to improve production efficiency

◆ It is not necessary to touch the cleaning solution with hands, and the deep holes, narrow seams and hidden parts of the workpiece are also cleaned safely and reliably

◆ No damage to the workpiece surface

◆ Save solvent, heat energy, workplace and labor.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ

28khz Digital Control Ultrasonic Cleaner Generator For Cleaning Equipment
