The audio frequency electrical signal higher than 20KHZ generated by the ultrasonic generator is converted into mechanical oscillation of the same frequency through the piezoelectric inverse effect of the transducer, and

The audio longitudinal wave radiates in the cleaning solution. Because of the alternating positive and negative pressure of the ultrasonic longitudinal wave propagation, countless micro

Small bubbles will burst at any time to form a slight local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the object surface and in the gap will peel off rapidly. This is called super

"Cavitation effect" unique to acoustic cleaning.

Using the latest other exciting control circuit, the ultrasonic density is greatly improved, the cleaning work is more meticulous, and the cleanliness is higher. The ultrasonic power generator has the frequency sweeping function. By sweeping the ultrasonic frequency back and forth within a reasonable range during the cleaning process, it drives the cleaning solution to form a slight reflux, so that the workpiece dirt can be quickly removed from the workpiece surface while being ultrasonic stripped, and the cleaning efficiency is improved. It is driven by imported high-power tubes, with a power factor of up to 95%, ensuring a strong output power. The dirt with strong adhesion can also be quickly removed. In the working state, real-time frequency tracking is realized. Ensure that the generator can maintain automatic frequency tracking at any time when the transducer frequency changes in the case of changes in water temperature, number of workpieces, cleaning agent, etc., to achieve the best working state matching the transducer frequency.

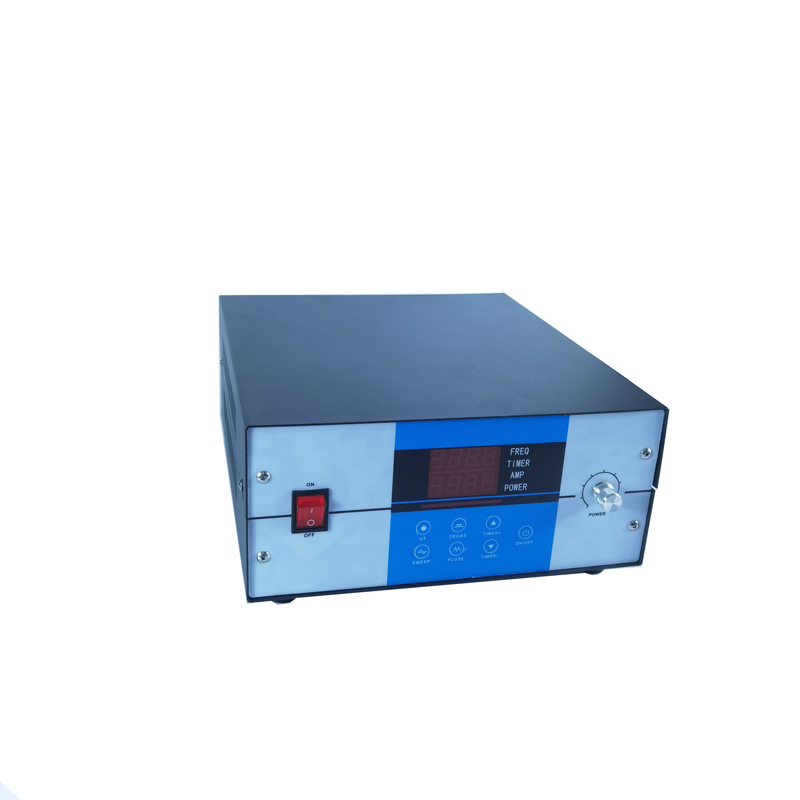

Frequency And Current Adjustment Ultrasonic Cleaner Generator With Cleaning Transducer
