Ultrasonic generator, also known as ultrasonic driving power supply, electronic box and ultrasonic controller, is an important part of high-power ultrasonic system.

The function of ultrasonic generator is to convert electricity into high-frequency AC signal matching with ultrasonic transducer and drive ultrasonic transducer to work. Considering the conversion efficiency, high-power ultrasonic power supply generally adopts the circuit form of switching power supply.

The ultrasonic generator is mainly used for ultrasonic cleaning machine, ultrasonic vibrating plate and ultrasonic cleaning line. It is suitable for electronics, hardware, clocks, electroplating, stainless steel, ceramics, lighting, automobile industry, tableware disinfection, precision instruments, optics and other industries. It has the characteristics of high efficiency, low cost, thorough cleaning, no dead corner and strong practicability.

1. Frequency sweeping function: the advanced frequency sweeping circuit in the international market can effectively protect the shock plate;

2. All power output components IGBT are imported devices, which have the advantages of small volume, high power, fast response and so on;

3. Power tube: imported 50A / 1200V inlet tube is adopted to eliminate the possibility of tube burning;

4. The unique sealing and anti-corrosion technology ensures the long-term stable and reliable operation of the internal circuit board;

5. The new excitation control circuit has an output power of more than 98%, which greatly improves the ultrasonic cavitation density;

6. The output current is sine wave, which can prolong the service life of the transducer and generator itself;

7. Wide range sweep frequency: 15khz-80khz adjustable, suitable for all kinds of transducers;

8. Constant output design, small output current ripple, more stable output, and protect the transducer from damage;

9. Output overcurrent and short circuit protection can protect the generator power tube.

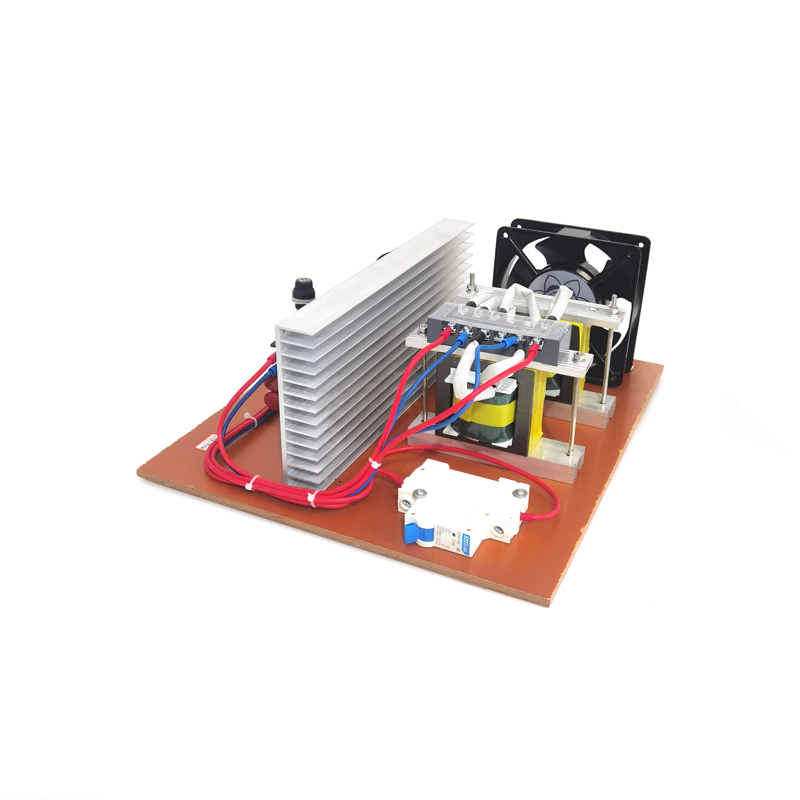

28KHZ/40KHZ 900W Ultrasonic Frequency Signal PCB Generator
