ultrasonic dishwasher cleaning generator 25khz/28khz for cleaning

Category：Company news

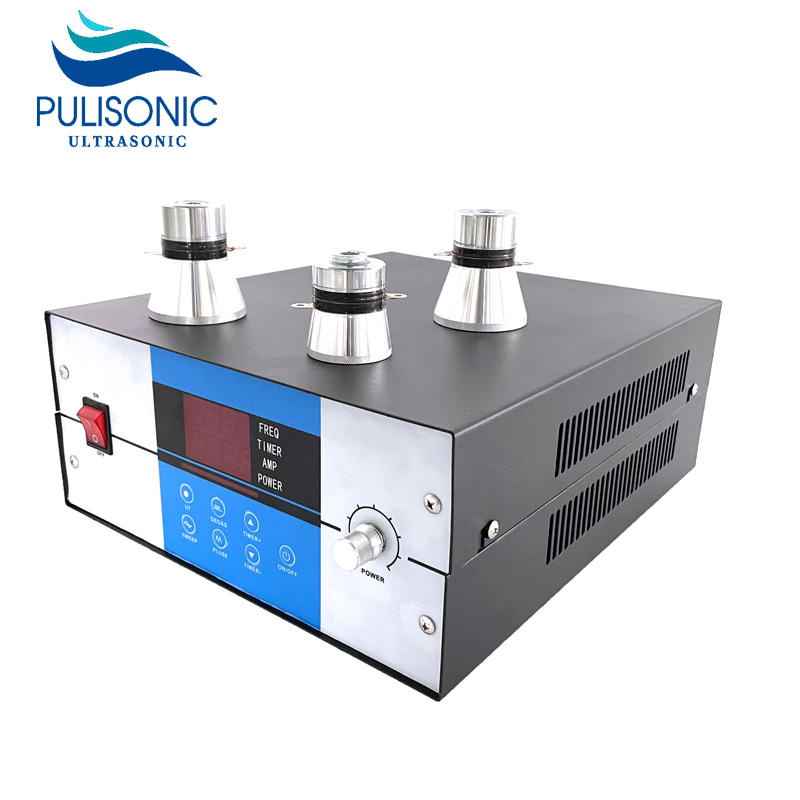

ultrasonic dishwasher cleaning generator 25khz/28khz for cleaning

The ultrasonic generator is assembled with high-quality electronic components

2. Advanced and reliable protection circuit mode greatly improves the reliability of the whole machine

3. Frequency modulation and automatic frequency compensation, frequency digital display

4. Frequency deviation, working current dual meter indication and protection function

5. The plug can be used according to the customer's requirements

6. Simple structure, easy maintenance, low price and high quality

2、 Digital intelligent electric

The digital intelligent ultrasonic power supply is controlled by a new single chip microcomputer to measure, compare and execute various parameters. Automatic frequency tracking, power adjustment and impedance adjustment can be preset and controlled to realize automatic frequency scanning and tracking, automatic fault detection and protection, and the operation is very convenient and reliable.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

ultrasonic dishwasher cleaning generator 25khz/28khz for cleaning
