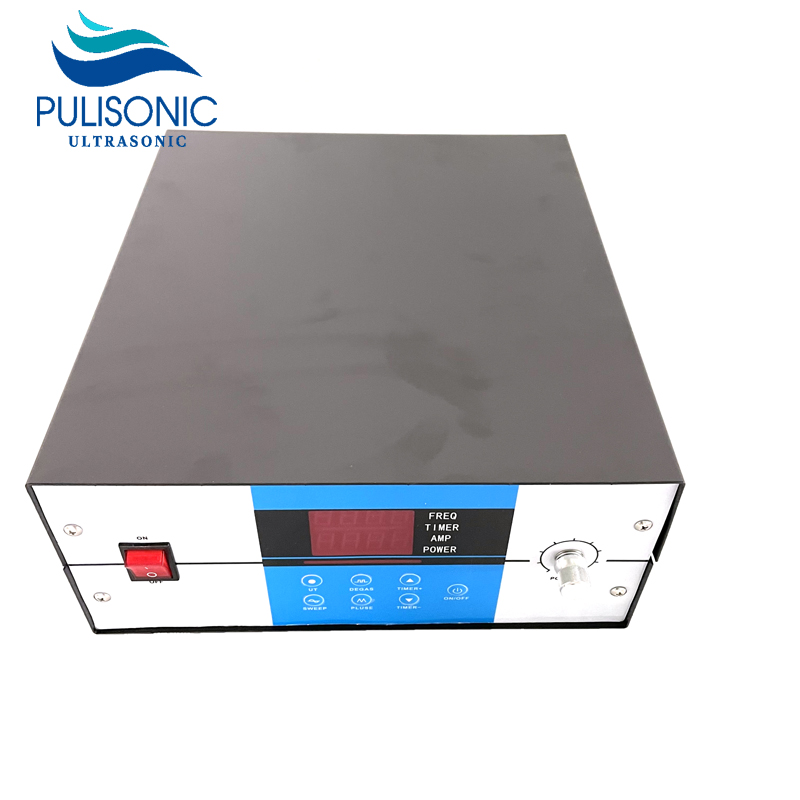

Power and timer Adjustable Ultrasonic generator 28khz-40khz

Category：Company news

Power and timer Adjustable Ultrasonic generator 28khz-40khz

The principle of ultrasonic power supply is that firstly, the signal generator generates a signal with a specific frequency, which can be sinusoidal signal or pulse signal. This specific frequency is the frequency of the transducer. Generally, the ultrasonic frequencies used in ultrasonic equipment are 20kHz, 25kHz, 28kHz, 33khz, 40KHz and 60KHZ; 100kHz or above has not been widely used yet. However, with the continuous development of precision cleaning in the future. It is believed that the application area will gradually expand.

Ultrasonic power supply, also known as ultrasonic generator, is a device used to generate and provide ultrasonic energy to ultrasonic transducer. Its purpose is to convert our mains power (220V or 380V, 50Hz or 60Hz) into a high-frequency AC signal that can be matched with the ultrasonic transducer. This signal can be sinusoidal signal or pulse signal.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Power and timer Adjustable Ultrasonic generator 28khz-40khz
