Ultrasonic generator, also known as ultrasonic electric box, ultrasonic power supply, ultrasonic control box, ultrasonic generator, etc., is mainly matched with ultrasonic cleaning machine, ultrasonic vibrating plate or ultrasonic cleaning line. Today, with the rapid development of industrialization, ultrasonic cleaning has completely replaced manual cleaning and is applicable to electronics, hardware, circuit, electroplating, stainless steel, ceramics, lighting, automobile industry, tableware disinfection, precision instruments Optics and other industries, with the characteristics of high efficiency, low cost, thorough cleaning, no dead corner and strong practicability, are widely used by customers at home and abroad.

Pay attention to ensure that the generator is ventilated and dry; Pay attention to cooling under high temperature, and the generator power supply or cleaning machine shall be reliably grounded!

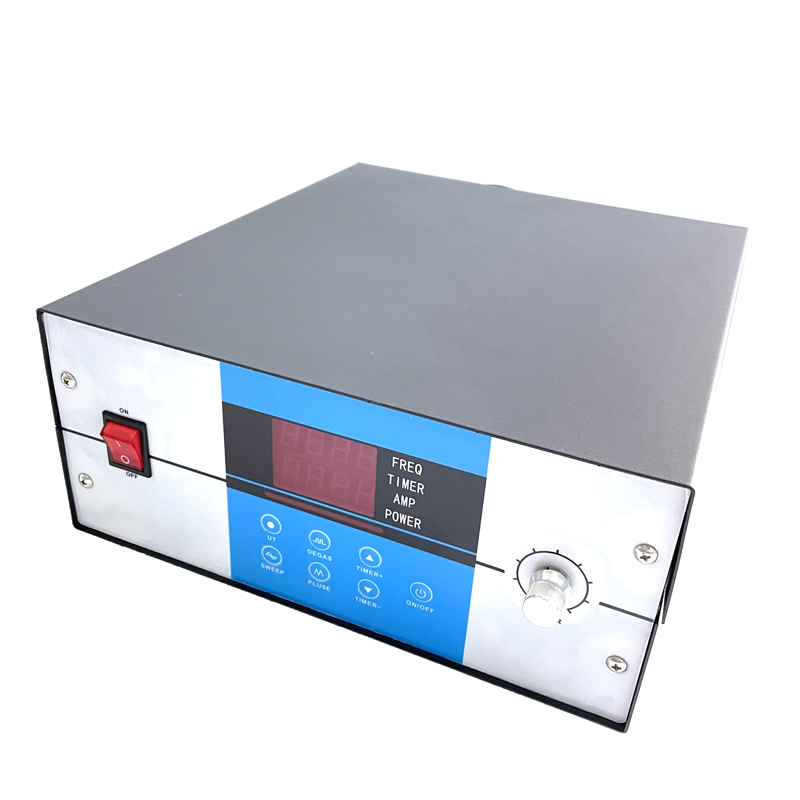

Thank you for using our ultrasonic generator. In order to improve the defects of complex adjustment process, this machine upgrades and updates the circuits, procedures and components. After more than two years of repeated testing and factory practice, it has launched a new intelligent digital display ultrasonic generator with complete functions and simple adjustment:

（1） . it has timing function, which can realize timing switch on and off;

（2） It has frequency sweeping function to realize frequency sweeping scouring and cleaning;

（3） . ultrasonic frequency, output wattage and current can be displayed at the same time, which is more intuitive and clear;

（4） . it has overcurrent, overload and overheating protection functions;

（5） The machine adopts high-power IBGT amplification output to drive the transducer, which makes the ultrasonic wave more powerful in liquid cavitation;

（6） The machine adopts PWM control chip to realize efficient dynamic response;

1. Timing range: 0-60 minutes 2. Ambient temperature: 0-40 degrees Celsius 3. Relative humidity: 40% - 90% 4. Maximum temperature: 60 degrees Celsius 5. Adjustment range: 2% - 100% (press pause for short-term shutdown).

2.





3. Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
   AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
   PLS-QXDY-300	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
   PLS-QXDY-600	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
   PLS-QXDY-900	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
   PLS-QXDY-1000	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
   PLS-QXDY-1200	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
   PLS-QXDY-1500	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
   PLS-QXDY-1800	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
   PLS-QXDY-2000	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
   PLS-QXDY-2400	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
   PLS-QXDY-3000	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
   High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
   High Frequency	100W-300W	175-200KHZ
   Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request

Power and Timer Adjustable Ultrasonic Cleaner Generator 25khz-33khz
