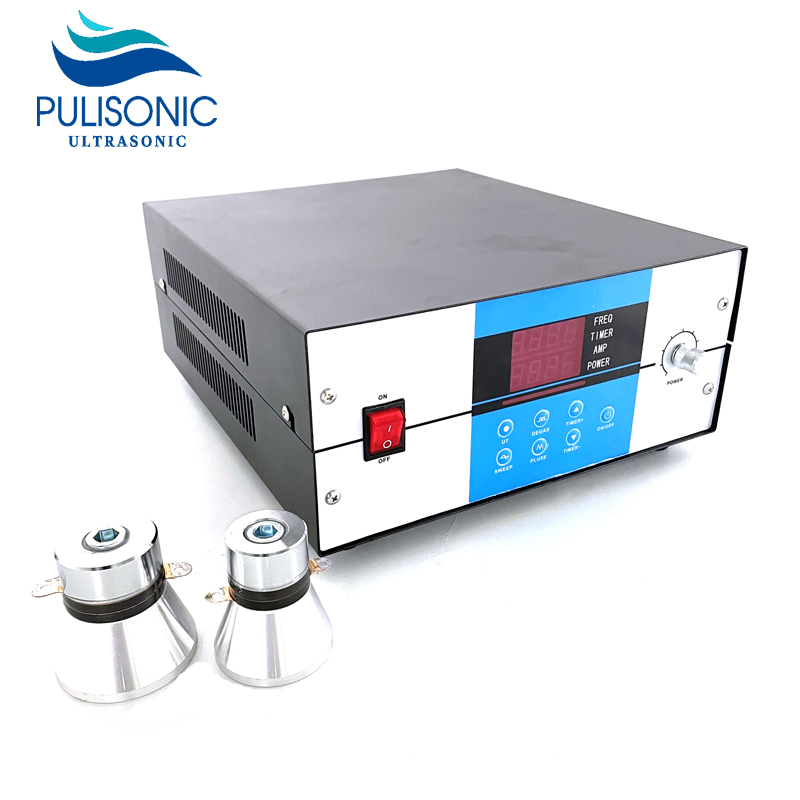

high power ultrasonic sound generator for cleaning 100W 25khz-40khz
Category：Company news
Ultrasonic generator to generate a specific frequency signal, which can be sinusoidal signal or pulse signal. This specific frequency is the working frequency of the transducer.
The ultrasonic frequency commonly used by ultrasonic equipment is 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 60KHZ, 80kHz, 100kHz or above, which has not been widely used.
The control box adopts other exciting circuit under the control of microcomputer, automatic frequency tracking and frequency scanning working mode and other advanced technologies. Compared with the traditional control box, it has stable and reliable operation, continuous and adjustable ultrasonic power, and can give full play to the potential of the transducer. Automatic tracking of working frequency enables better output matching, stronger power and higher efficiency. The ultrasonic cleaning solution can sweep the surface of the workpiece more quickly and thoroughly, so as to achieve a higher cleaning efficiency under the action of ultrasonic cleaning solution. At the same time, it has perfect protection
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE | ||||
PLS-QXDY-300 | 300W | 17khz,20khz,25khz,28khz,33khz,40khz | 3-6 | 300x360x150 |
PLS-QXDY-600 | 600W | 17khz,20khz,25khz,28khz,33khz,40khz | 6-12 | 300x360x150 |
PLS-QXDY-900 | 900W | 17khz,20khz,25khz,28khz,33khz,40khz | 9-18 | 300x360x150 |
PLS-QXDY-1000 | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz | 10-20 | 300x360x150 |
PLS-QXDY-1200 | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz | 12-24 | 300x360x150 |
PLS-QXDY-1500 | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz | 15-30 | 300x360x150 |
PLS-QXDY-1800 | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz | 18-36 | 300x360x150 |
PLS-QXDY-2000 | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz | 20-40 | 300x360x150 |
PLS-QXDY-2400 | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz | 24-48 | 300x360x150 |
PLS-QXDY-3000 | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request | ||||
