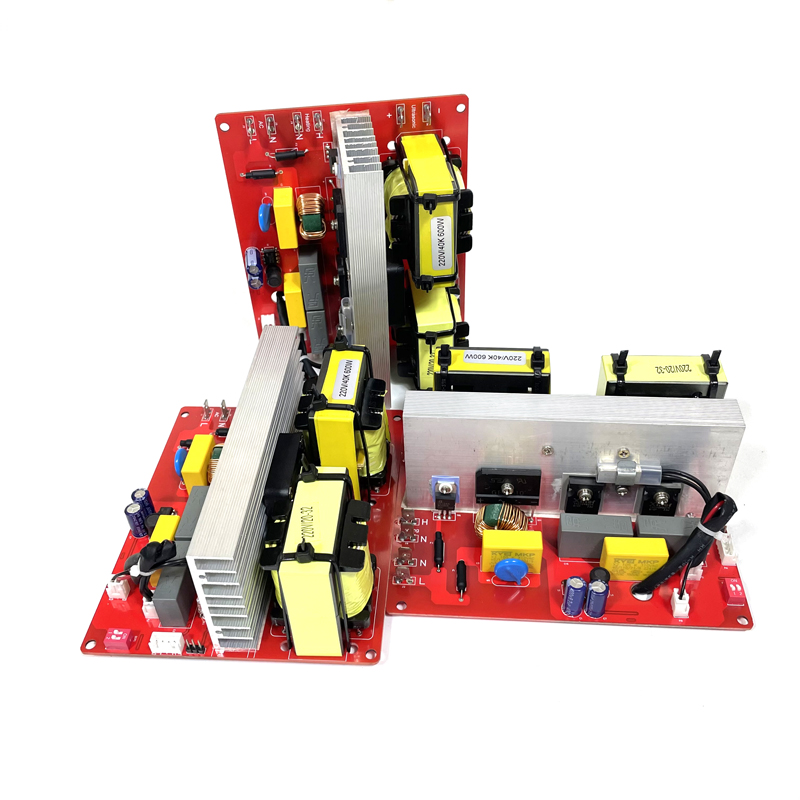

40k 25k 28khz 200W Cleaning Transducer Driver Ultrasonic PCB Generator Circuit for Cleaning Tank
Category：Company news
The low-power ultrasonic drive board circuit is a low-cost version of the ultrasonic power supply, which can drive 6-10 ultrasonic cleaning transducers. The circuit design of the low-power ultrasonic drive board is simple, with fewer components, low failure rate, good cleaning effect, and fast speed. The circuit of the small power ultrasonic drive board adopts the built-in form or the external form, and is equipped with a Computer fan.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
40k 25k 28khz 200W Cleaning Transducer Driver Ultrasonic PCB Generator Circuit for Cleaning Tank
