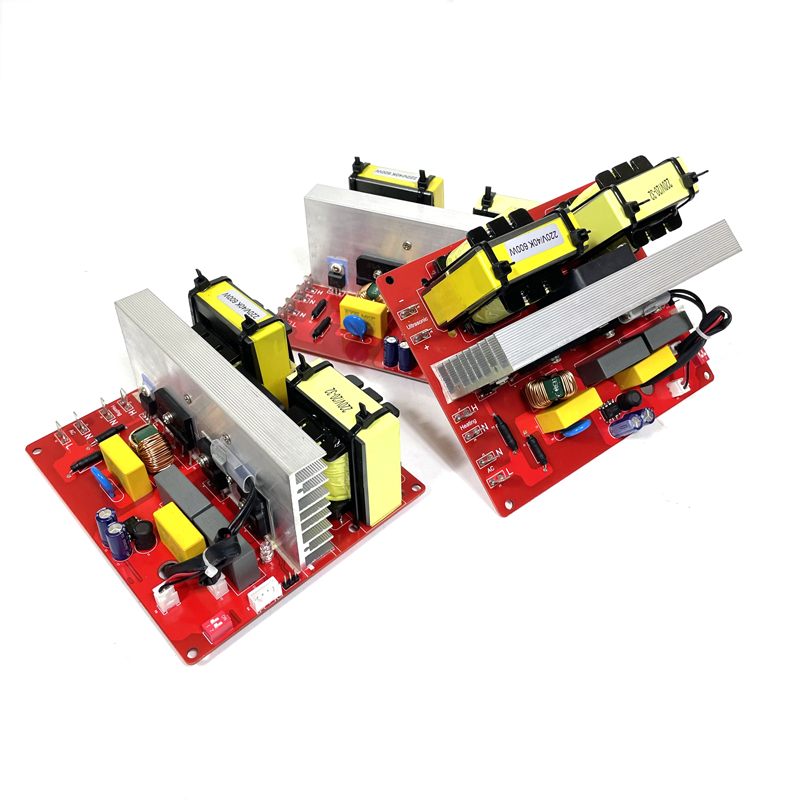

Industrial Ultrasonic PCB Generator Driver Generator Circuit Board With Transducer For Cleaning Machine
Category：Company news
The low-power ultrasonic PCB circuit board operates in a frequency sweep mode. After the frequency sweep is completed, the ultrasonic PCB circuit board starts working at the center of the resonant frequency, which is determined by the circuit structure and parameters. The series resonant frequency is determined by the l and c parameters in the series circuit, and is independent of the magnitude of the series resistance r and the applied excitation voltage. A low-power ultrasonic PCB circuit board will only resonate when the frequency of the external excitation is equal to the natural frequency of the circuit.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
Industrial Ultrasonic PCB Generator Driver Generator Circuit Board With Transducer For Cleaning Machine
