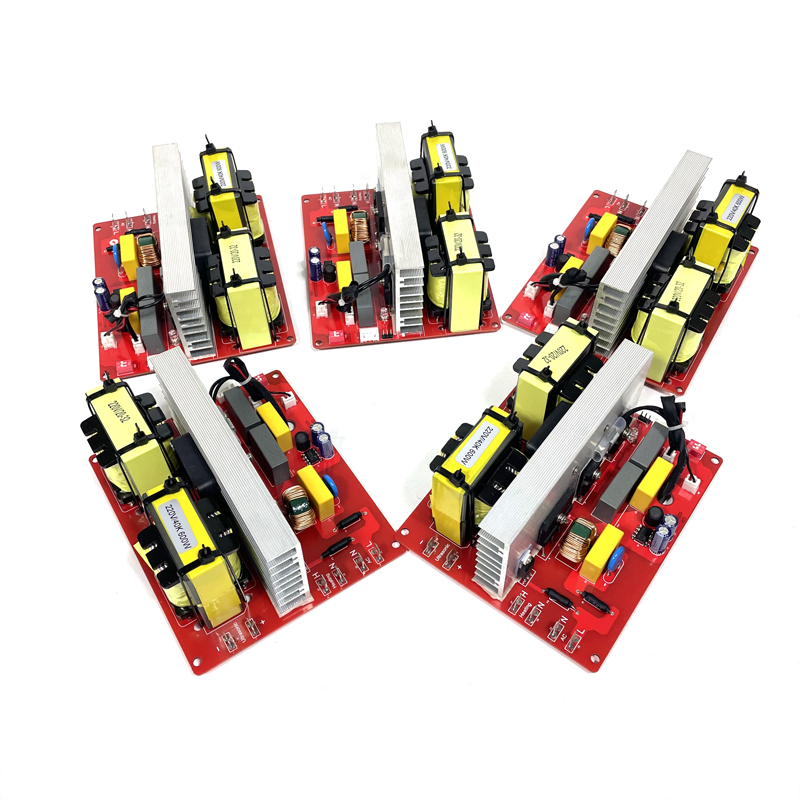

40KHZ 600W 110V Ultrasonic Generator PCB Transducer Driver Circuit For 2liter Ultrasonic Cleaner
Category：Company news
The ultrasonic power PCB control board is a built-in ultrasonic cleaning power generator, which can drive 1-10 ultrasonic cleaning transducers to meet the needs of small digital cleaning machines and small Ultrasonic cleaning. The ultrasonic power PCB control board can work when turned on, and can achieve frequency and current regulation. The ultrasonic power PCB control board has the advantages of small size, light weight, high conversion efficiency, and low energy consumption.
Type | Frequency | Power | Dimension(mm) | Transducer numbers |
PLS-DLB60T | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
PLS-DLB100T | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
PLS-DLB120T | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
PLS-DLB150T | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
PLS-DLB200T | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
PLS-DLB300T | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
PLS-DLB400T | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
PLS-DLB500T | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
PLS-DLB600T | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
Ultrasonic PCB generator could to 2400W,welcome send the enquire | ||||
200W-600W Ultrasonic PCB frequency adjustable,display board is optional | ||||
Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us du | ||||
40KHZ 600W 110V Ultrasonic Generator PCB Transducer Driver Circuit For 2liter Ultrasonic Cleaner
